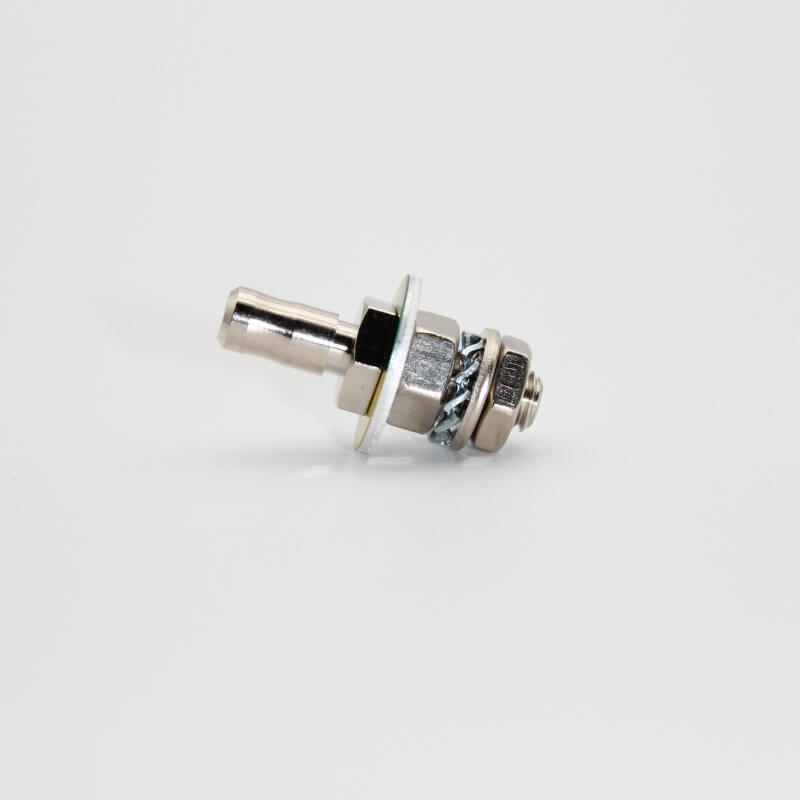

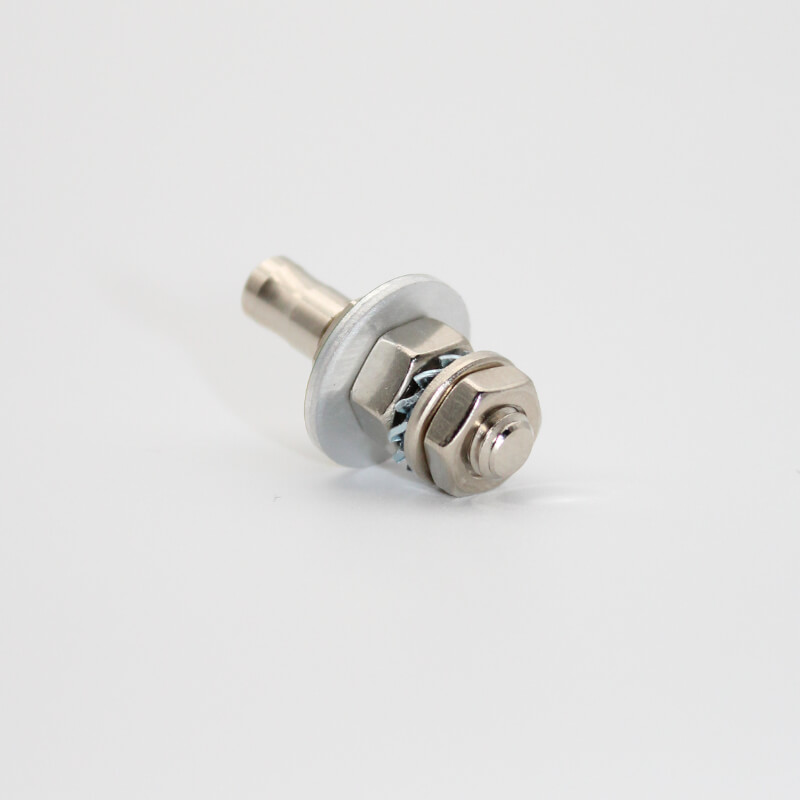

WERTH SYSTEMS PEPS-15
Built-in Potential Equalization Pin Installation Set in 15mm length
- Comply with DIN 42801 Norm - connection device for potential equalization conductors
- Long-lasting - resistant to air, water and most diluted acids and bases
- High wear resistance - nickelized brass material
- Ready to built in - complete set with all needed parts for the installation in a device
- Long time availability
The PEPS Potential Equalization Pin Installation Set, with bare brass and nickelized surface, provides a permanent and long-lasting connection, even after thousands of insertion – withdrawal operations. Our PEPS Potential Equalization Pins are available with a threaded bar with 10mm to 25mm and supports up to 50 A current. Above all shall the PEPS tightened with a tightening torque of three Newton meters.

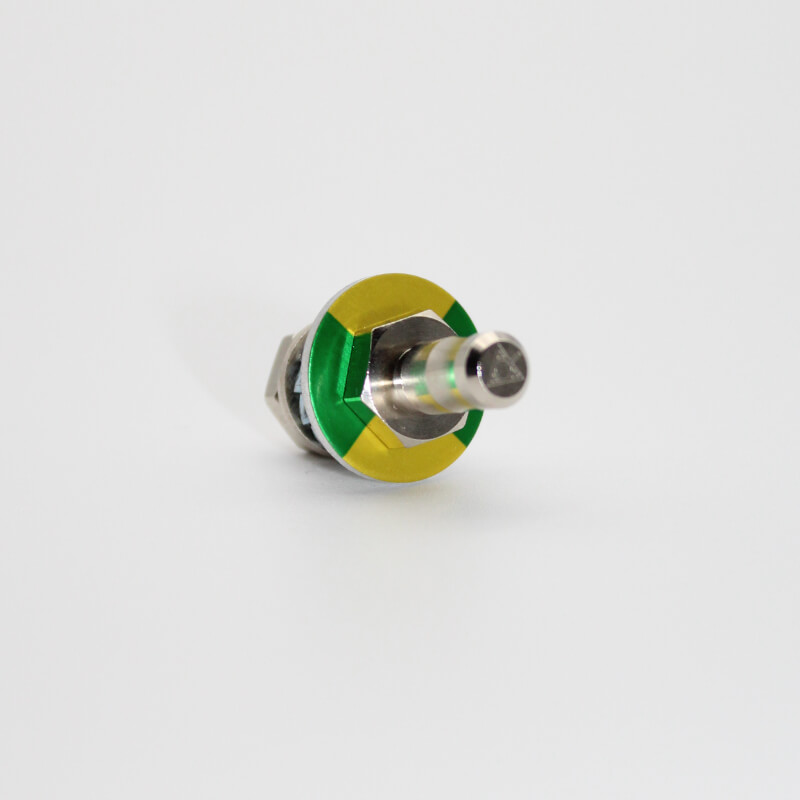

The PEPS-Set includes: 1x Pin, 1x color code washer (green/yellow coated), 1x serrated lock washer (DIN 6798), 1x nut (DIN 439), 1x nut (DIN 934), 1x washer (DIN 125)
