POTENTIAL EQUALIZATION
An additional Potential Equalization is required in the EN60601-1 for all Medical Electrical Systems which are connected to mains with a Power Strip or an Isolation Transformer. Potential equalization Pins, Sockets and cables are available from Stock. Cables are basically available in 0.5m to 5m Cable length. Further length are available for customization.

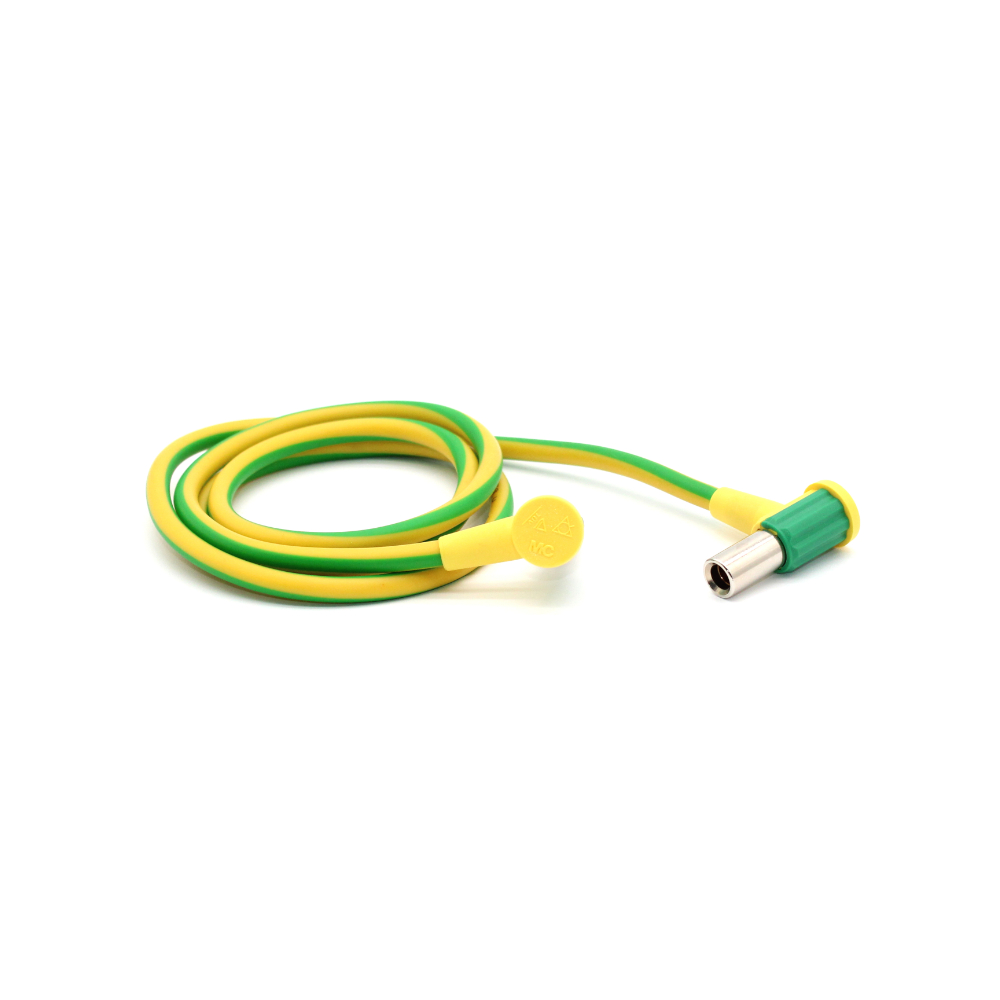

PECA Potential Equalization Cable
PECA is our Potential Equalization cable with super flexible single wires, available in different lengths.

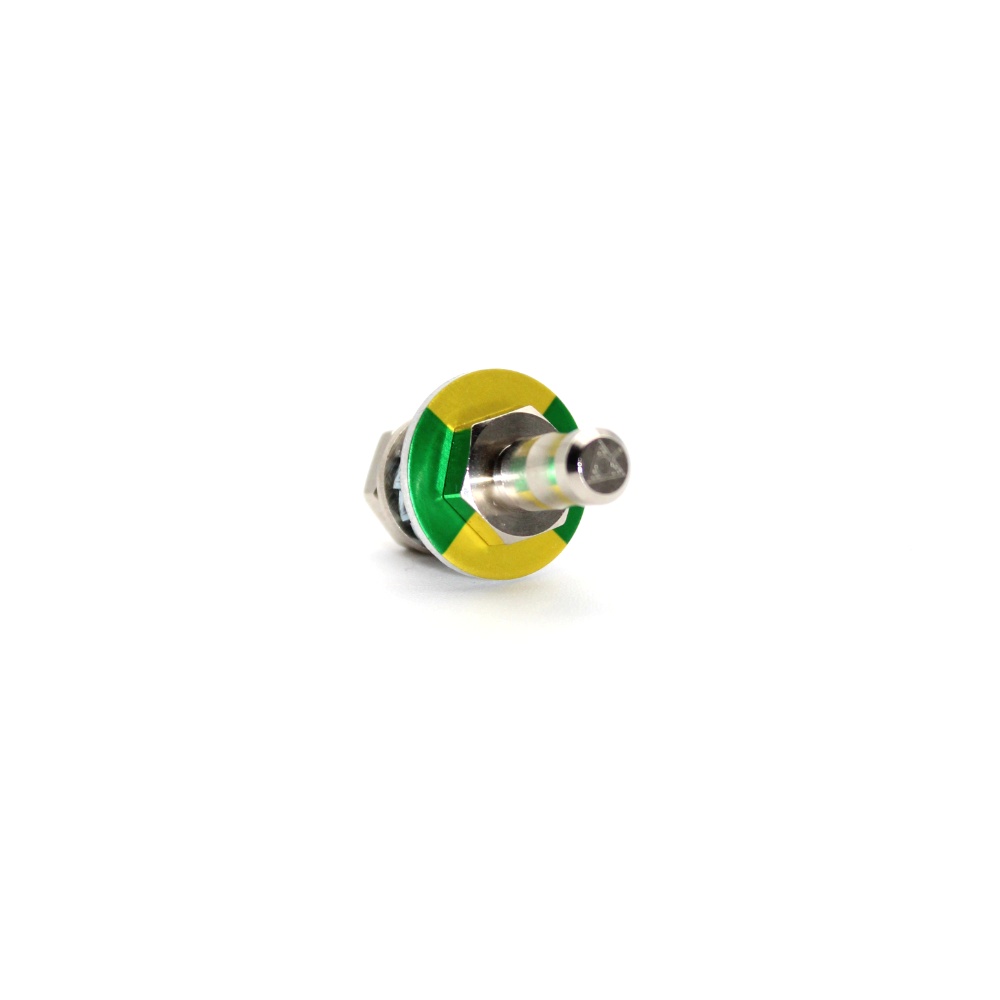

PEPS 15 Potential Equalization Pin Set15mm
PEPS Potential Equalization Pin Installation Set ready to built-in in 15mm length, compliant with DIN 42801 made of nickelized brass material.

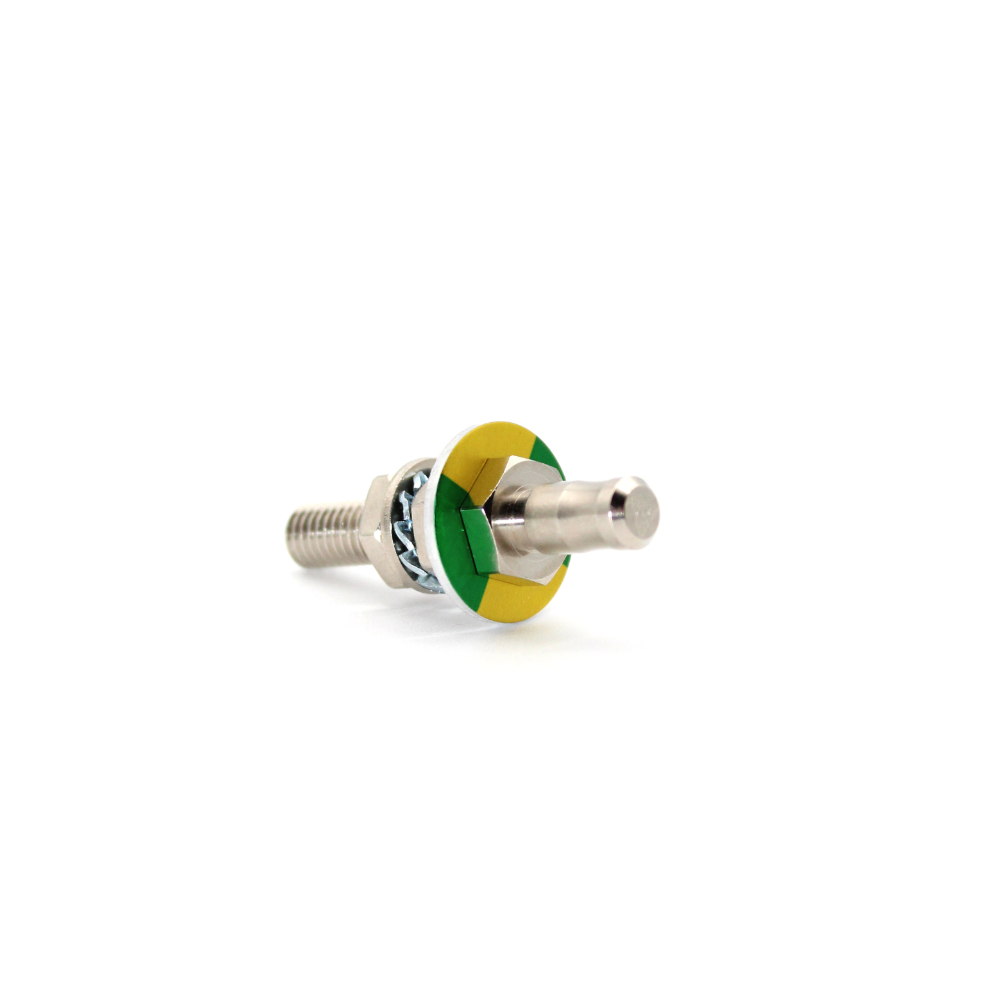

PEPS 25 Potential Equalization Pin Set 25mm
PEPS Potential Equalization Pin Installation Set ready to built-in in 25mm length, compliant with DIN 42801 made of nickelized brass material.

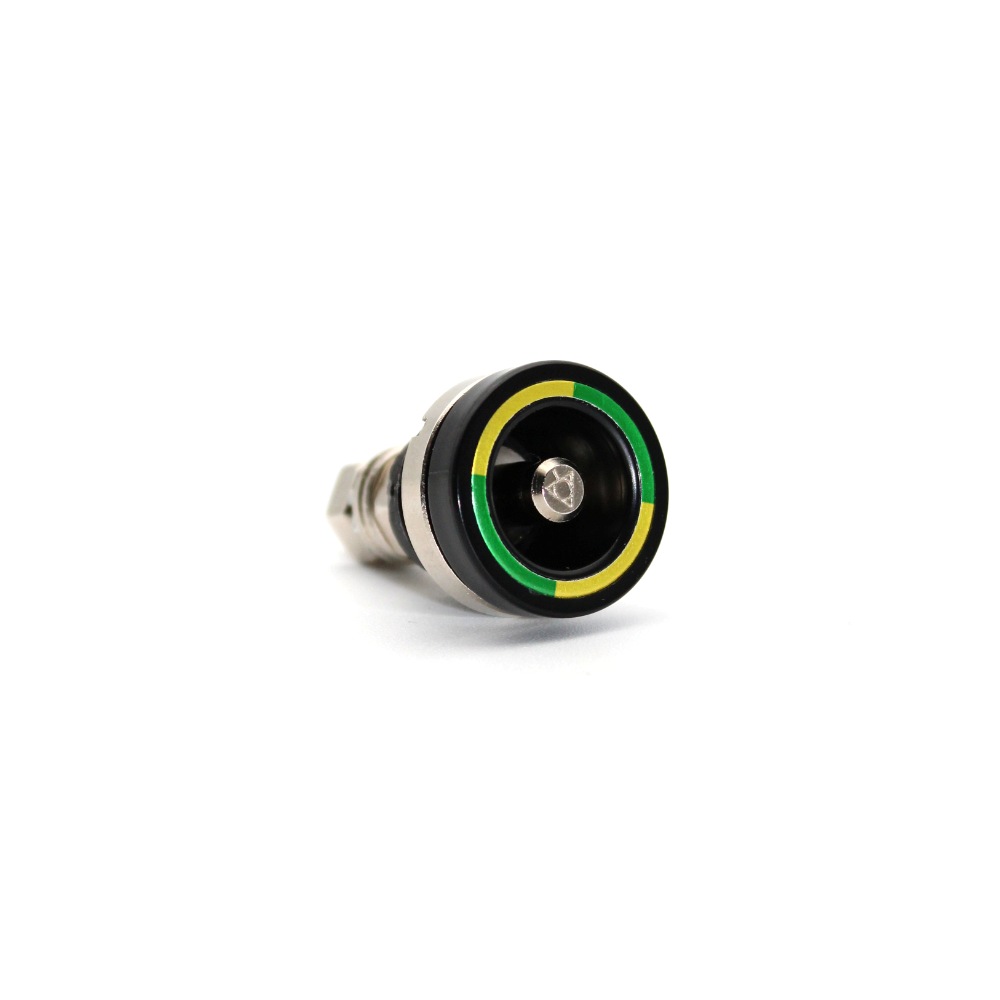

PES Potential Equalization Socket
Potential equalization socket for installation and compliant with DIN 42801

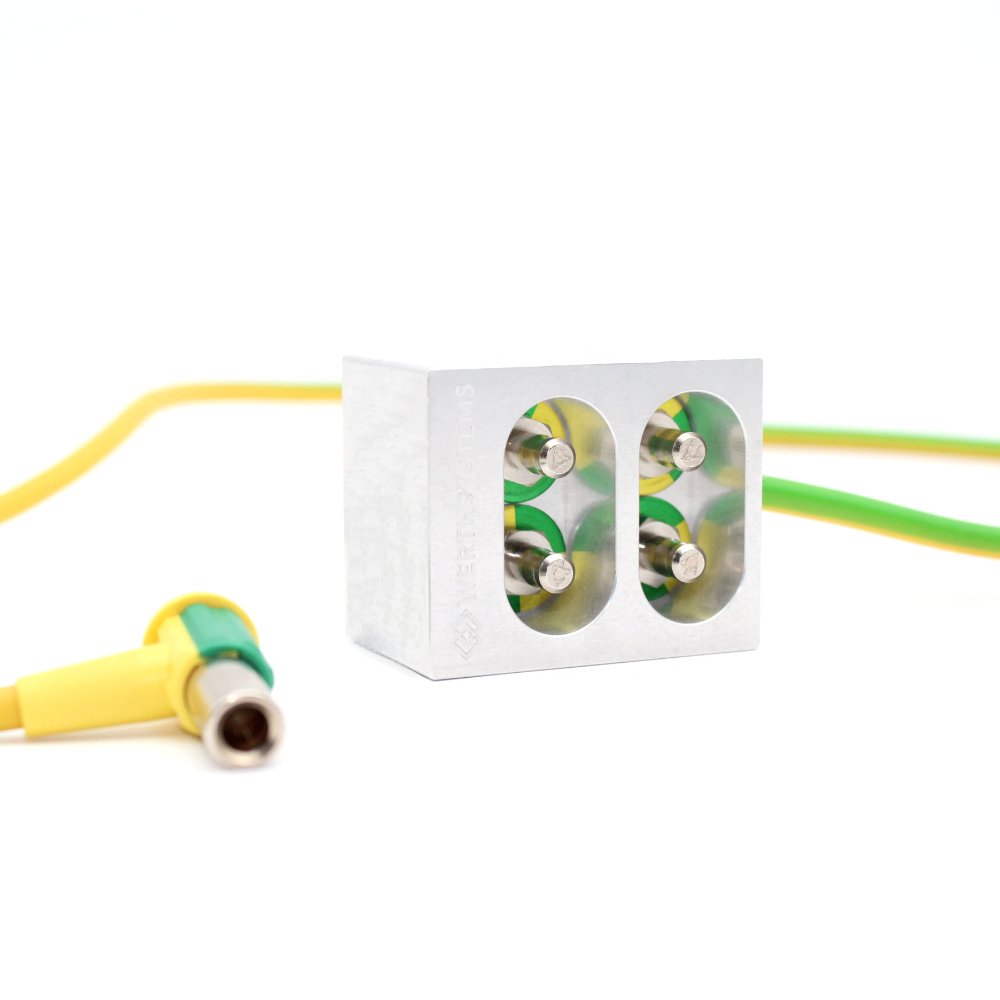

PETE 4 Potential Equalization Terminal
PETE Potential Equalization Terminal for four devices in a monobloc aluminum housing. Available in different variations.

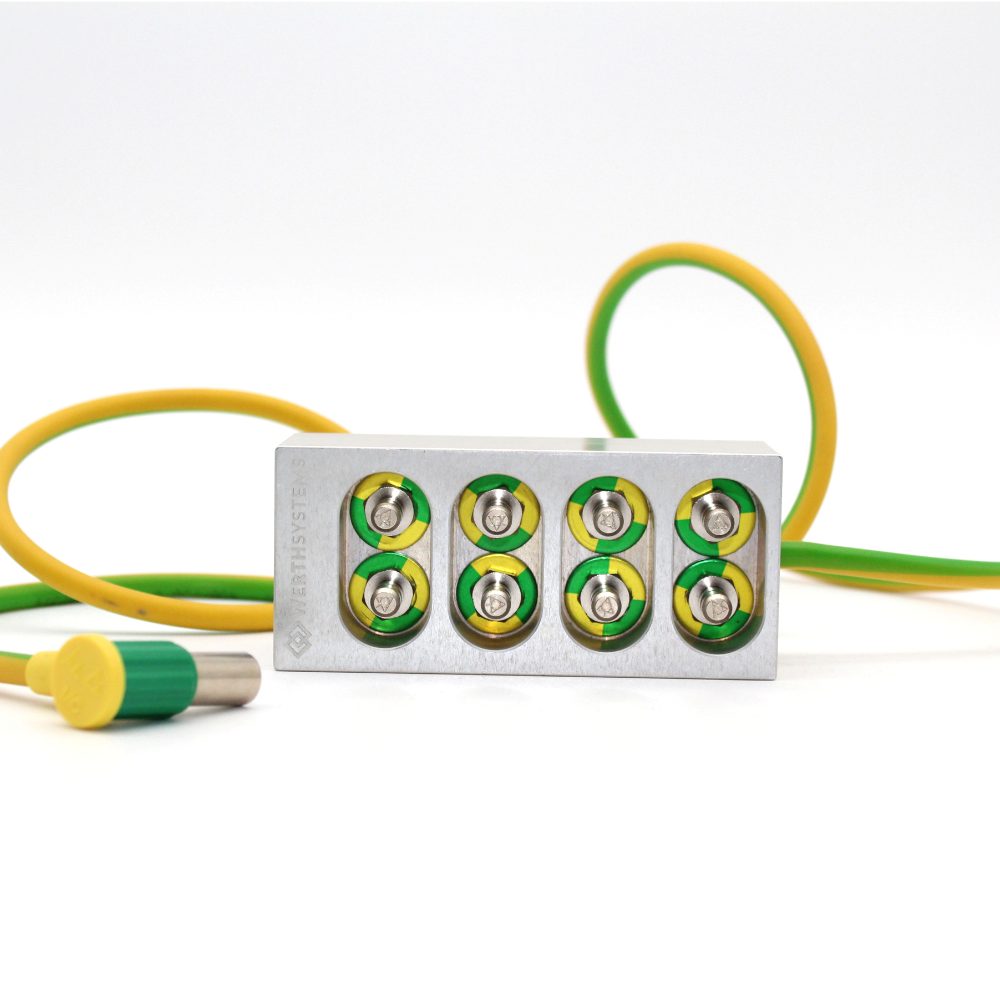

PETE 8 Potential Equalization Terminal
PETE Potential Equalization Terminal for eight devices in a monobloc aluminum housing, available in different variations with cable or pin.
