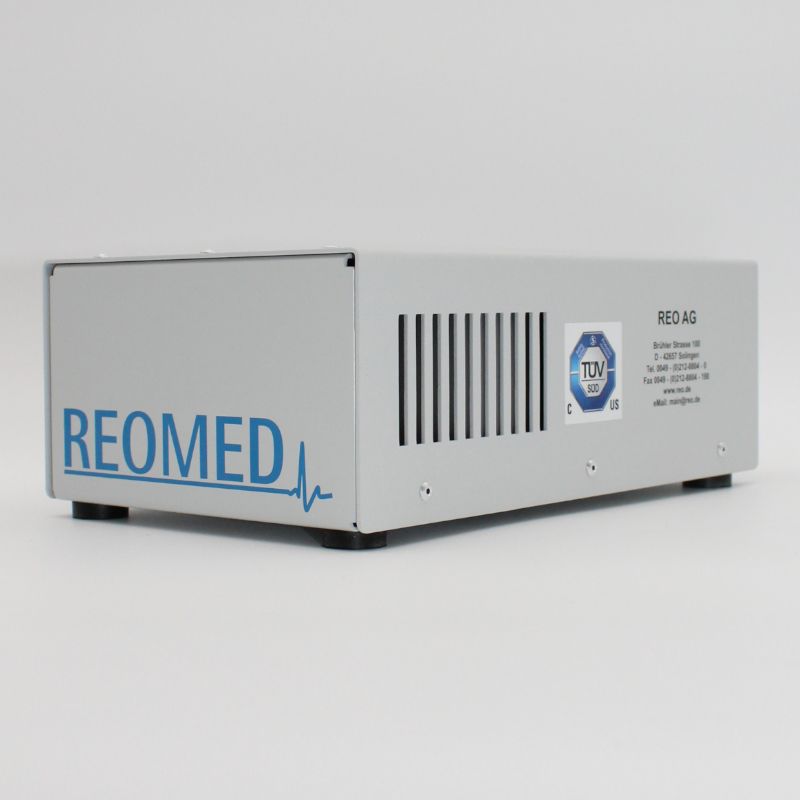

REOMED 300VA A-50W Series Isolation Transformer
TÜV+NRTL Certified Medical Isolation Transformer for 100 – 250V AC environments with 4000V Isolation.
- Secures your system against high leakage current & half-wave failure
- Reduces the risk of an electrical shock
- Safe - optional isolation monitor available
- Durable - none aging parts
- No supply noise or hum - encapsulated transformer
- Made in Germany
The REOMED A-50W Series is manufactured in Germany according to ISO 9001 for a safe power supply of Medical diagnosis and analysis devices, systems for therapy and surgery, ECG, Ultrasound, IT equipment and video systems.
Furthermore, are the TÜV-certified REOMED isolating transformers a proven and reliable equipment for use with all electrical systems in a medical environment, since they reduce the leakage current and thus help to ensure the safety of patients. The REOMED 300VA A-50W isolation transformer and the other variants are characterized by their very low magnetic stray-fields and reliability, whilst also providing high efficiency and easy connectivity.

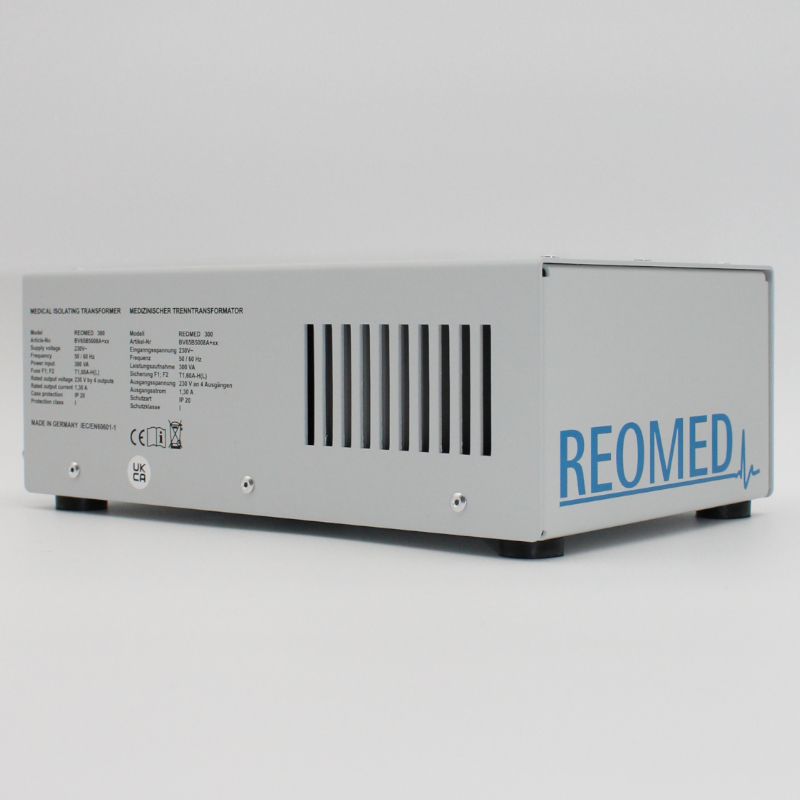

Technical Information REOMED 300VA A-50W Series Isolation Transformer
Technical Components
- Part Number: 2000466
- 300 VA Nominal Output Power
- 230 V AC Input voltage primary (+/- 10%)
- 230 V AC Output voltage secondary
- Output Current 1.30 A
- 4x IEC60320-2-2 (C13) secondary device output
- < 2M Ohm Isolation conductor resistance / < 0,1 Ohm protective earth conductor resistance
Sizes & Measurement
- 85* x 150 x 240 mm (H x W x D) *90 mm with rubber feet
- 4.5 Kg
- Metal housing, surface power-coated - RAL 7035
Norms & Conformity
- IEC 60601−1:2012, IEC 60601-1-2 :2014, TÜV Süd NRTL
- Electric Safety Class I
- IP20
Isolation and patient environment
The REOMED 300VA Transformer can be equipped with an additional REOMED Isomonitor for the safest power supply of medical diagnosis and analysis devices, systems for therapy and surgery, ECG, Ultrasound, IT Equipment and video systems.
Further available options of the REOMED A-50 Series Isolation Transformer
REOMED 600VA A-50W Series Isolation Transformer
Medical certified medical isolation transformer 600VA Nominal Output Power
REOMED 1000VA A-50W Series Isolation Transformer
Medical certified medical isolation transformer 1000VA Nominal Output Power
REOMED 1600VA A-50W Series Isolation Transformer
Medical certified medical isolation transformer 1600VA Nominal Output Power
