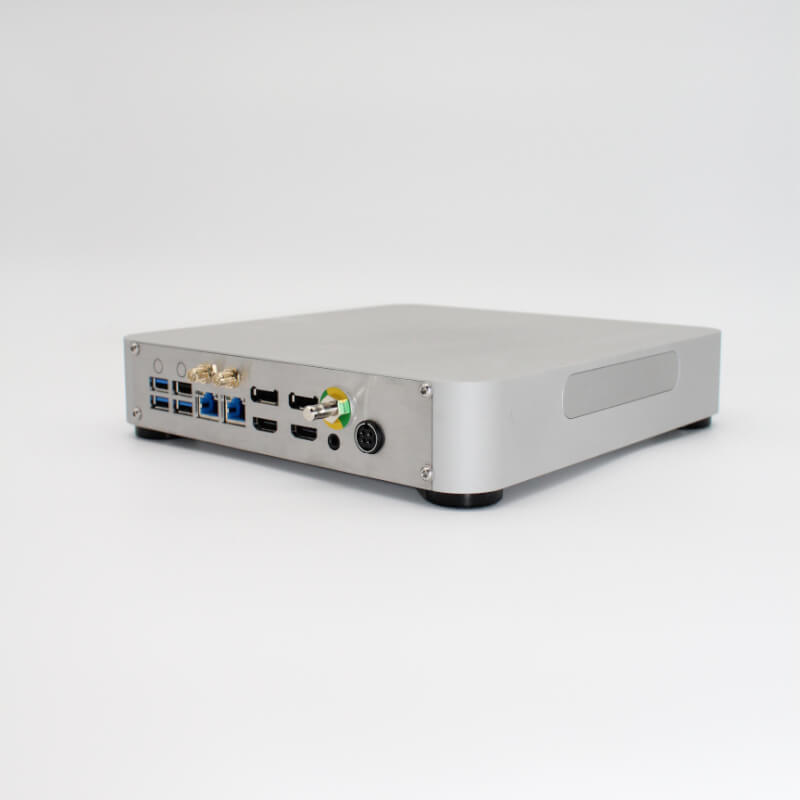

WERTH SYSTEMS XE-850 Medical Computer
The compact and fanless Medical Computer
- Compact & fast - up to Intel i5 14th Generation CPU with 10 Cores
- Silent - sound does not violate patients or users
- Easy to clean - hygiene optimized unibody design
- Cost-cutting - maintenance free and low life-cycle-costs
- Long-lasting - long availability and up to 5 years warranty
The fanless XE-850 Medical Computer is a compact PC of the latest generation designed for areas where a thin client doesn’t deliver enough performance. It is the perfect solution for PDMS Systems with an increased demand on longevity and efficiency of workflows. It supports powerful Intel 13th. and 14th. Generation CPUs with up to 9000 CPU Mark points. Due to the unique aluminum monocoque housing with integrated Quad-Channel-Heat spreader, it is a reliable basis for the creation of a modern and powerful medical electrical system in rough environments or in hygiene sensitive areas.
Versions of the XE-850 Medical Computer
XE-850 i3
Part Number: 2002194-
2.7 to 4.4 Ghz Clockspeed
-
12 MB Cache
-
4 CPU Cores & 4 Virtual Cores
-
8200 Passmark Score
-
16 GB RAM Standard Setting
XE-850 i5
Part Number: 2002159-
1.1 to 4.5 Ghz Clockspeed
-
20 MB Cache
-
10 CPU Cores & 6 Virtual Cores
-
9000 Passmark Score
-
16 GB RAM Standard Setting
Hygiene Optimized Design
The XE-850 Medical Computer is easy to clean with standard cleaning agents, since there are no edges or corners on the surface. Thanks to its unibody aluminum housing, the XE-850 has a IP52 protection against liquids and dust.
Technical Information XE-850 Medical Computer
Technical Components
- 64 GB (2x 32 GB) DDR5 5600 MHz RAM Maximal
- 512 GB M.2 SSD
- Up to 3 Displays can be supported

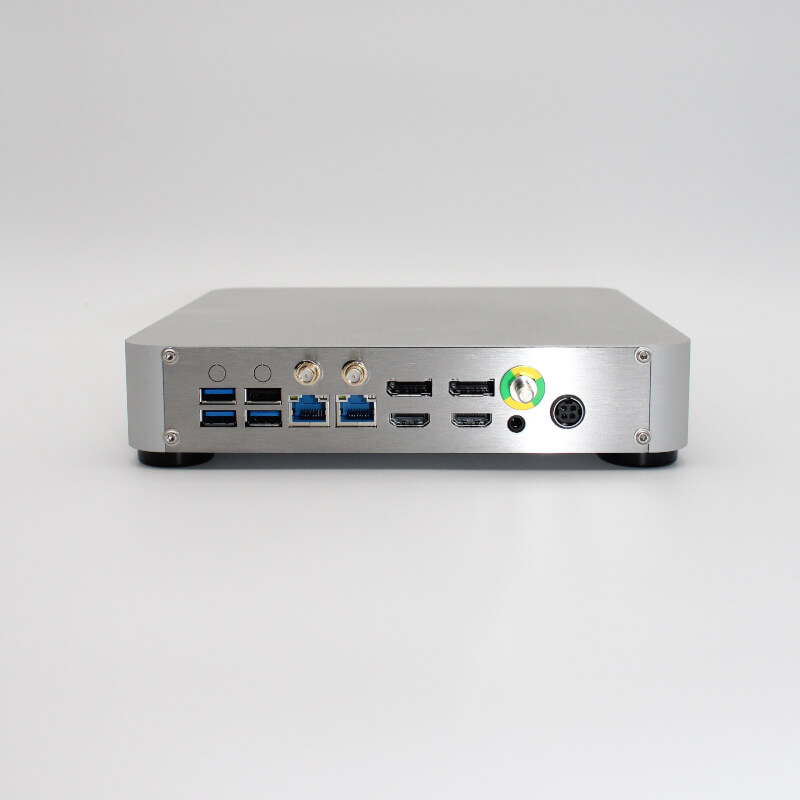

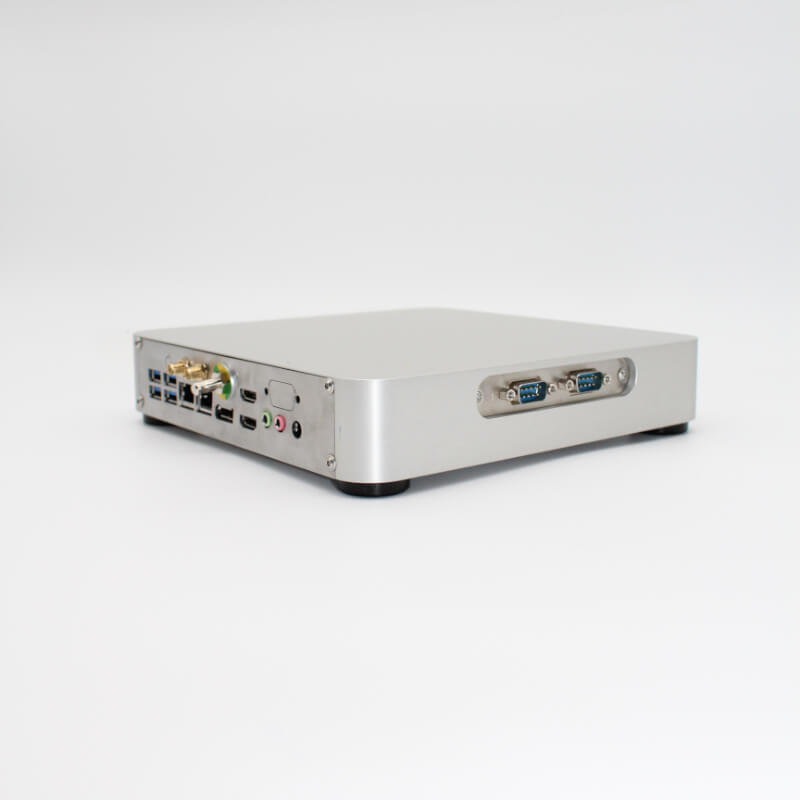

- Ports: 3x USB 3.2, 1x USB 2.0, 2x RS-232, 2x Display Port, 2x HDMI 1.4
- Internal Slots: 1x M.2 M-Key 2280, 1x M.2 E-Key 2230, 1x M.2 B-Key 3042/3052
Sizes & Measurement
- 217 x 45 x 217 mm (W x H x D)
- 3.6 Kg
- Aluminum / Steel
Norms & Conformity
- IEC 60601−1−2 :2014, Power Supply: IEC 60601−1 :2012
- CE, RoHS
- IP52 (IP65 from 4 sides)
Available options and extensions for the XE-850 Medical Computer
Optional Ports
Wi-Fi Module a/b/g/n/ax with one or two Antenna Ports, additional 2x USB 2.0 instead of 2x RS-232
Storage SSD's
1x 256 GB / 512 GB / 1 TB M.2 SSD
WLAN Antennas
High Gain 5dBi Antennas (screw-on type), High Gain 6 dBi with IP62 (mountable Antennas)
Optional Parts
Rear Cover for I/O Ports for easy disinfection
Mountings
VESA 75/100 mounting adaptor to mount on VESA Mounts or Arms.
Additional Warranty
Expansion to 4 / 5 years Warranty / 48h Replacement in advance
