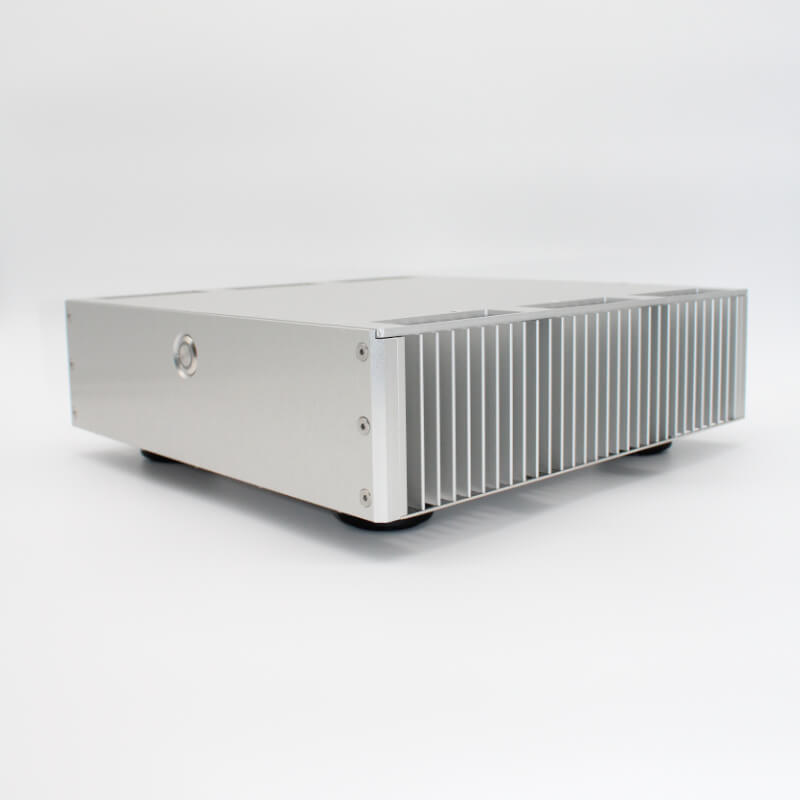

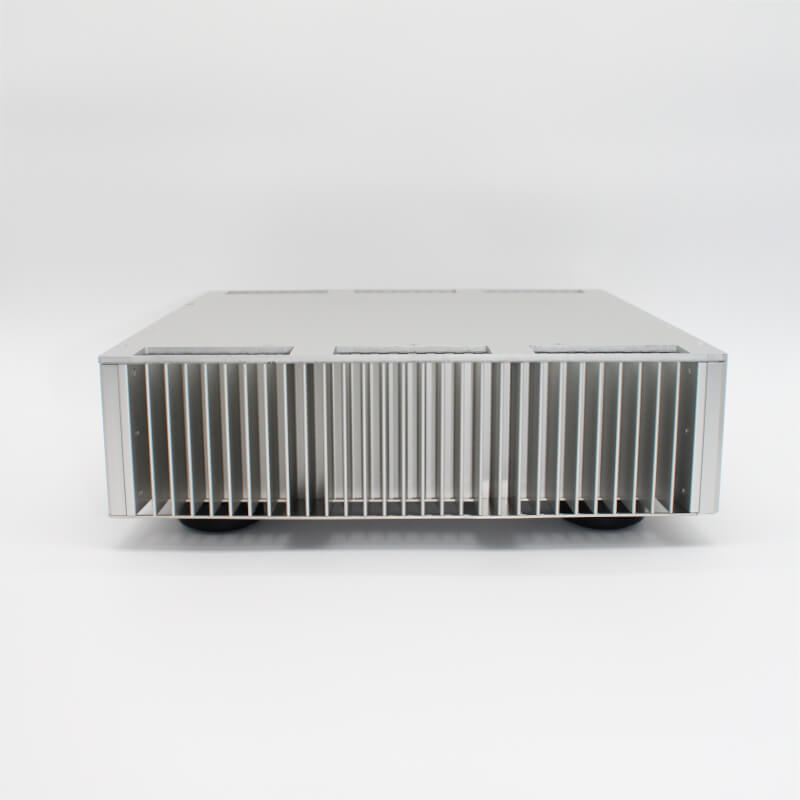

WERTH SYSTEMS TT-2050 Medical Computer
Fanless Medical PC Workstation for high performance applications
- High performance - up to Intel Core i9 24-Core-14th. Generation CPU
- Silent - sound does not violate patients or users
- Easy to clean - waterproofed IP62 aluminum housing
- AI Acceleration - NVIDIA T-1000 Graphics Card with fanless cooling*
- Long-lasting - long availability and up to 5 years warranty
The fanless WERTH SYSTEMS TT-2050 PC is a high-performance compact PC of the latest generation, designed to meet the increased demand on longevity and powerful workflows. The optimized 5 channel copper heat pipe cooling system keeps the system simultaneously stable and fast. Furthermore, makes the PCIe x16 Slot for a graphics card or capture card, the TT-2050 medical computer the ideal basis for the creation of a state-of-the-art medical electrical system, as example for medical AI Applications.
Versions of the TT-2050 Medical Computer
TT-2050-i9
Part Number: 2001374-
0.8 to 5.5 Ghz Clockspeed
-
36 MB Cache
-
24 CPU Cores & 8 Virtual Cores
-
35000 Passmark Score
TT-2050-i7
Part Number: 2002052-
0.9 to 5.2 Ghz Clockspeed
-
33 MB Cache
-
20 CPU Cores & 8 Virtual Cores
-
28000 Passmark Score
TT-2050-i5
Part Number: 2002195-
1.2 to 4.8 Ghz Clockspeed
-
24 MB Cache
-
14 CPU Cores & 6 Virtual Cores
-
22000 Passmark Score
Hygiene optimized design
The medical computer TT-2050 is easy to clean with standard cleaning agents due to the completely closed IP65 housing. An optional IP62 cable cover protects the I/O shield and all ports against any liquids.
Technical Information TT-2050 Medical Computer
Technical Components
- 16 GB RAM Standard Setting & 96 GB (1x 32 GB + 1x 64 GB) DDR5 5600 MHz RAM Maximal
- 1x 2.5 SATA SSD & 1x M.2 SSD Harddisk / SSD
- Up to 4 Displays can be supported
- Ports: 4x USB 3.2, 2x USB 2.0, 2x RS-232, 2x Display Port 1.4a, 2x HDMI 2.0b
- Internal Slots: 1x M.2 M-Key 2280, 1x M.2 M-Key 2242, 1x M.2 E-Key 2230, 1x M.2 B-Key 3042/3052
- PCIe x16 Slot (up to 50 Watt)
Sizes & Measurement
- 268 x 96 x 258 mm (W x H x D)
- 8.0 Kg
- Aluminum / Steel
Norms & Conformity
- IEC 60601−1−2 :2014, Power Supply: IEC 60601−1 :2012
- CE, RoHS
- IP65 from 5 sides / IP52 for rear side (optional IP62 rear cover available)
Available options and extensions for the TT-2050 Medical Computer
Additional rear ports
2x RS-232 or 2x USB 2.0 (occupies PCIe Slot) / 1x Front USB / 2x WLAN Connector
HARDDISKS / SSD'S
1x 250 GB, 512 GB, 1 TB, 2 TB 2.5' SATA SSD and 1x 250 GB, 512 GB, 1 TB, 2 TB M.2 SSD
Safety functions
IP62 Rear Cover for I/O Ports for easy disinfection
Framegrabber & Graphics Card with SMART-MED Heatpipe
Magewell PCIe & M.2 Framegrabber/Blackmagic Decklink Mini Series, Intensity Pro 4K OR PCIe x16 Single Slot Graphic Cards with up to 50 Watt and 290 mm length are supported, eg. NVIDA QUADRO RTX-A1000-8GB with 2304 Cuda Cores* with WERTH SYSTEMS Heat pipe cooling.
Mountings
VESA 75/100 mounting adaptor to mount the TT-2050 on VESA Mounts or Arm.
Additional Warranty
Expansion to 4 years / 5 years Warranty
