WERTH SYSTEMS ST-1050 Medical Computer
The fanless and expandable high performance Medical Computer
- Powerful - 14th. Generation Intel Core i5 or i7 CPU with up to 20 CPU-Cores
- Universal mountable - optional VESA 100 and DIN Rail Mount
- Expendable - 1x PCIe x16 Slot, optional 4 kV isolated LAN and RS232 Ports
- Cost-cutting - maintenance free with remote access support
- Long-lasting - future-proof with long availability and up to 5 years warranty

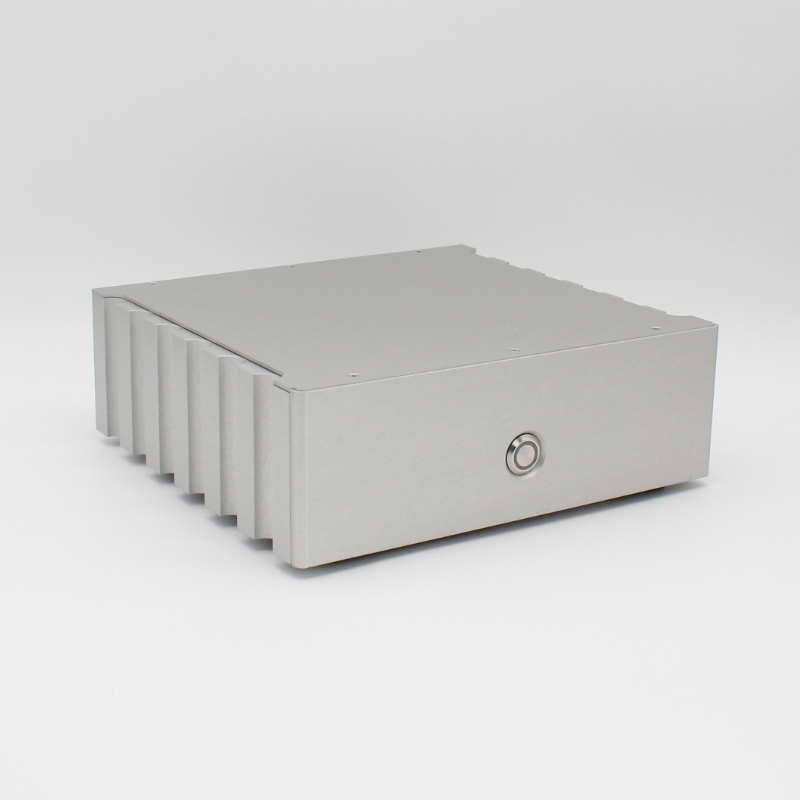

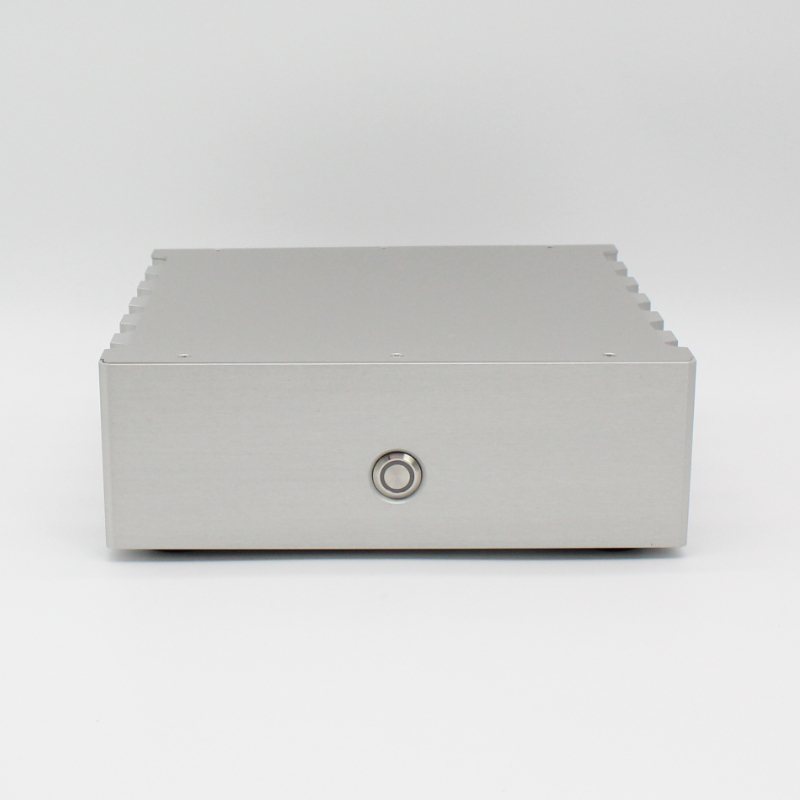

The fanless ST-1050 Medical Computer is a high-performance compact PC of the latest generation designed to meet the increased demand on longevity and efficiency of workflows. Due to the complete closed housing, the optimized 5 channel copper heat pipe cooling system, the PCIe x16 Slot for e.g. Framegrabber Cards, the optional isolated ports and the versatile expansion possibilities, it is the ideal basis for the creation of a modern medical electrical system. The optimized five channel copper heat pipe enables a constant high performance, even in a 24/7 usage.
Available Versions ST-1050 Medical Computer
ST-1050 i5
Part Number: 2002124-
1.1 to 4.5 Ghz Clockspeed
-
20 MB Cache
-
10 CPU Cores & 6 Virtual Cores
-
17000 Passmark Score
-
16 GB DDR5 RAM Standard Setting
ST-1050 i7
Part Number: 2002134-
0.9 to 5.2 Ghz Clockspeed
-
33 MB Cache
-
20 CPU Cores & 8 Virtual Cores
-
25000 Passmark Score
-
16 GB DDR5 RAM Standard Setting
Hygiene optimized design

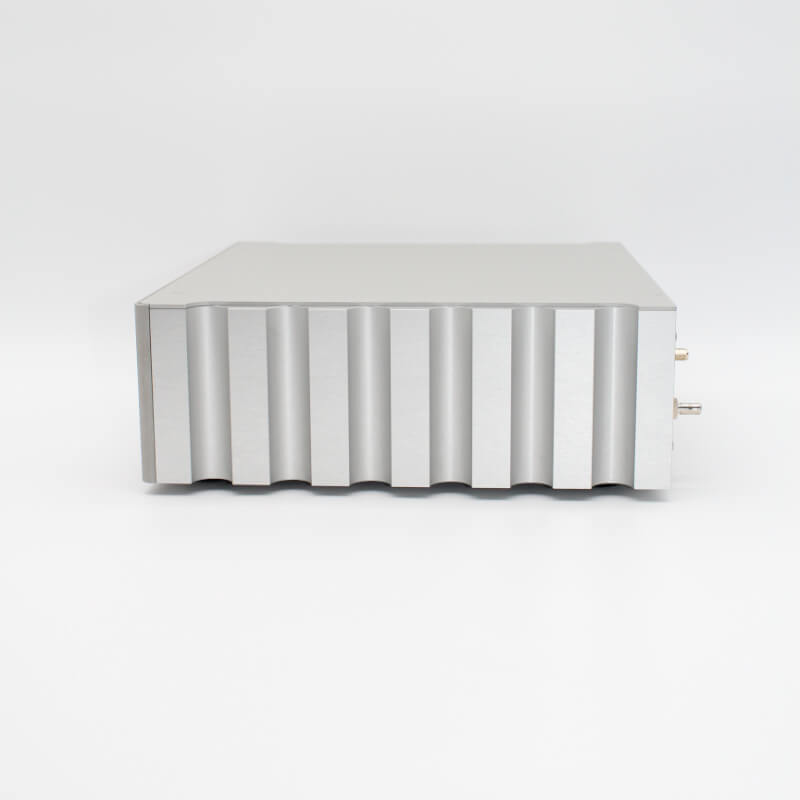

The ST-1050 is easy to clean with standard cleaning agents. Due to is rounded corners, the IP65 Front, the completely closed IP52 housing and the new designed HALFPIPE heat sinks.
Technical Information ST-1050 Medical Computer
Technical Components
- 96 GB (1x 32GB + 1x 64 GB) DDR5 5600 Mhz RAM Maximal
- 512 GB SSD
- Up to 4 Displays can be supported

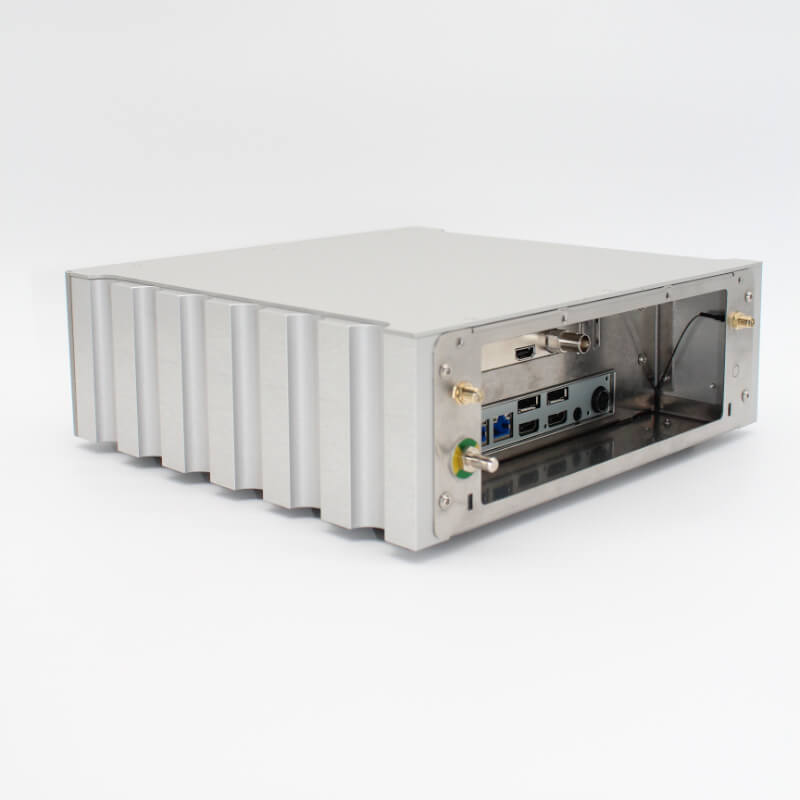

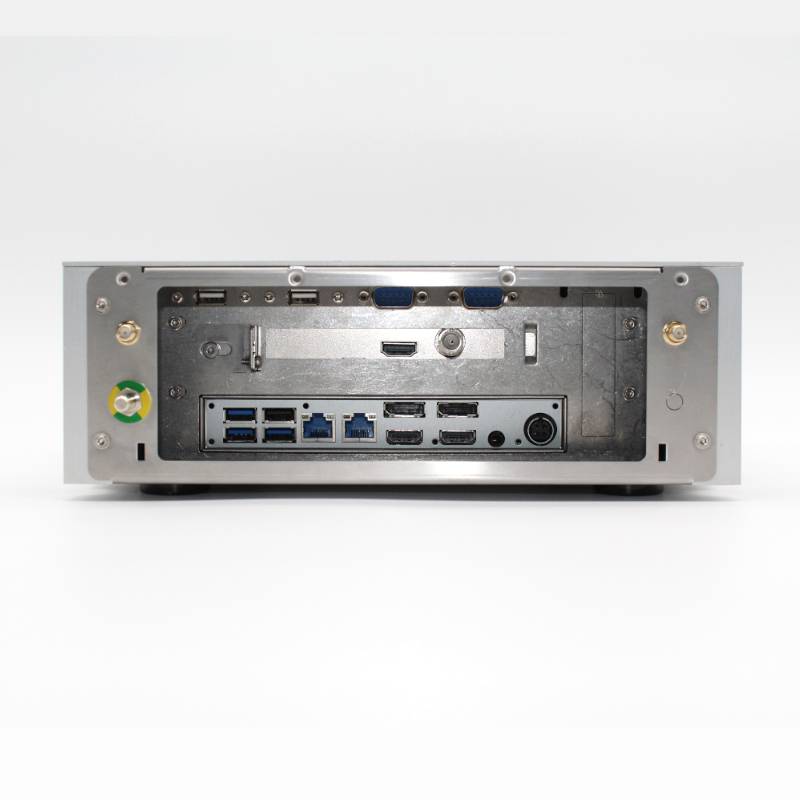

- Ports: 4x USB 3.2, 2x USB 2.0, 2x RS-232, 2x Display Port 1.4a, 2x HDMI 2.0b
- Internal Slots: 1x M.2 M-Key 2280, 1x M.2 Key 2242, 1x M.2 E-Key 2230, 1x M.2 B-Key 3042/3052
- PCIe x16 Slot (up to 15 Watt)
Sizes & Measurement
- 260 x 85 x 241 mm (W x H x D)
- 4.5 Kg
- Aluminum / Steel
Norms & Conformity
- IEC 60601−1−2: 2014, Power Supply: IEC 60601−1 :2012
- CE, RoHS
- IP52 (Frontside IP65 - only without DVD)
Available options and extensions for the ST-1050 Medical Computer
Isolated Ports 4 kV
2x RS-232 (occupies 1x PCIe Slot) / 1x 2.5 Gigabit LAN
HARDDISK'S / SSD'S
1x 1 TB / 2 TB -2.5' HDD or 512 GB / 1 TB / 2 TB 2.5' SSD 1x M.2 SSD 250 GB / 500 GB / 1 TB / 2 TB
AUDIO Amplifier and built in Stereo Speakers
2x 3 Watt Speaker and Amplifier
Optical Drive
1x Slot-In DVD Re-Writer or Blu-Ray/ DVD-Re-Writer - not in combination with PCIe Cards.
Framegrabber & Capture card with customized fanless Heatpipe Design
Magewell PCIe & M.2, Blackmagic Decklink Mini Series, Intensity Pro 4K/Matrox VIO/ Unigraf UGF-7 Single, Unigraf UFG-10/ Datapath Vision AV/RGB/SD4. Further configuration available.
Mountings
VESA 75 / 100 mounting adaptors to mount on VESA Mounts or Arm. DIN Rail Mount to mount PC on a rail.
Additional Warranty
Expansion to 4 / 5 years Warranty / 48h Replacement in advance
