WERTH SYSTEMS SLG-4-MED
Medical power strip with 4 Sockets with Built-In potential equalization splitter
- Different versions available - standard length with 3m & 5m cable further lengths upon request
- Easy to install -"ready to use" design with built-in mounting plate
- Durable - aluminum housing & rugged sockets with child-proof lock
- Flexible - mountable on DIN-Rails, Infusion-Stands or Carts
- Glass fiber reinforced side frames and mounting points
- Easy to check - green operation light shows operating state
- Complies with Potential Equalisation according to IEC60601-1 - built in additional Potential Equalisation Pins
- Made in Germany

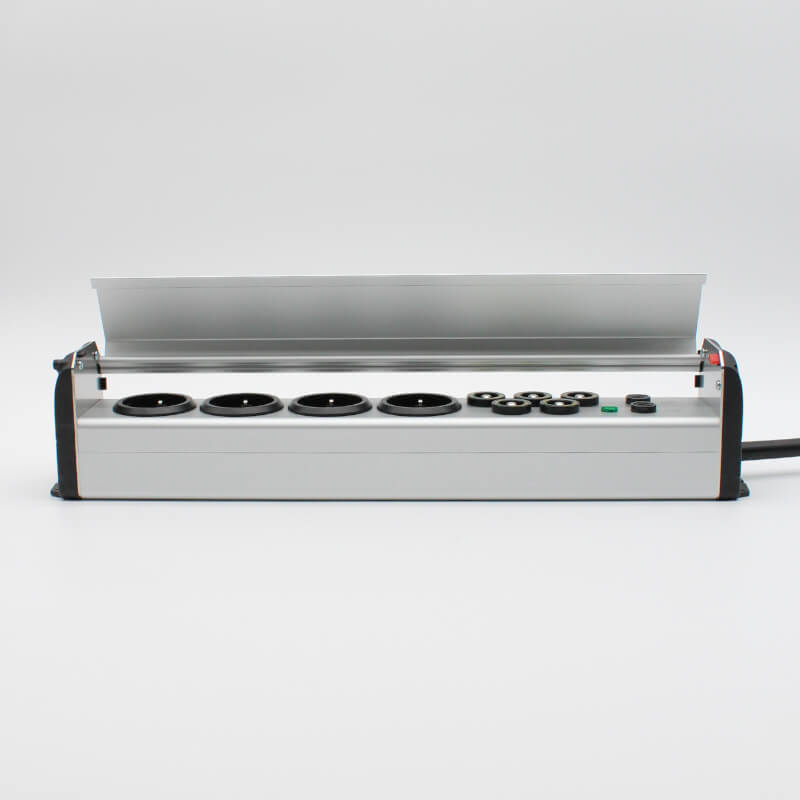

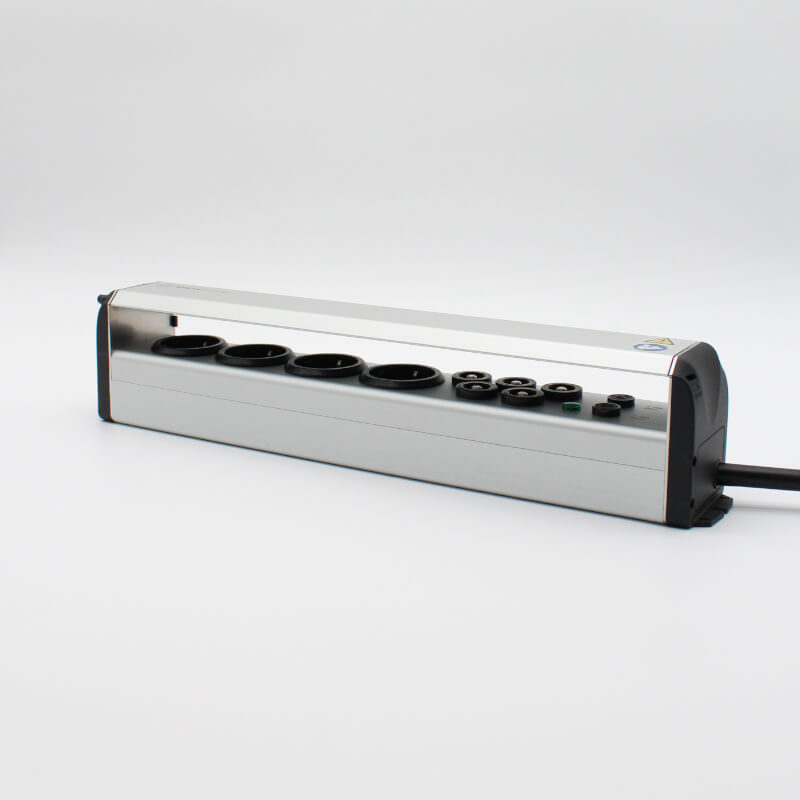

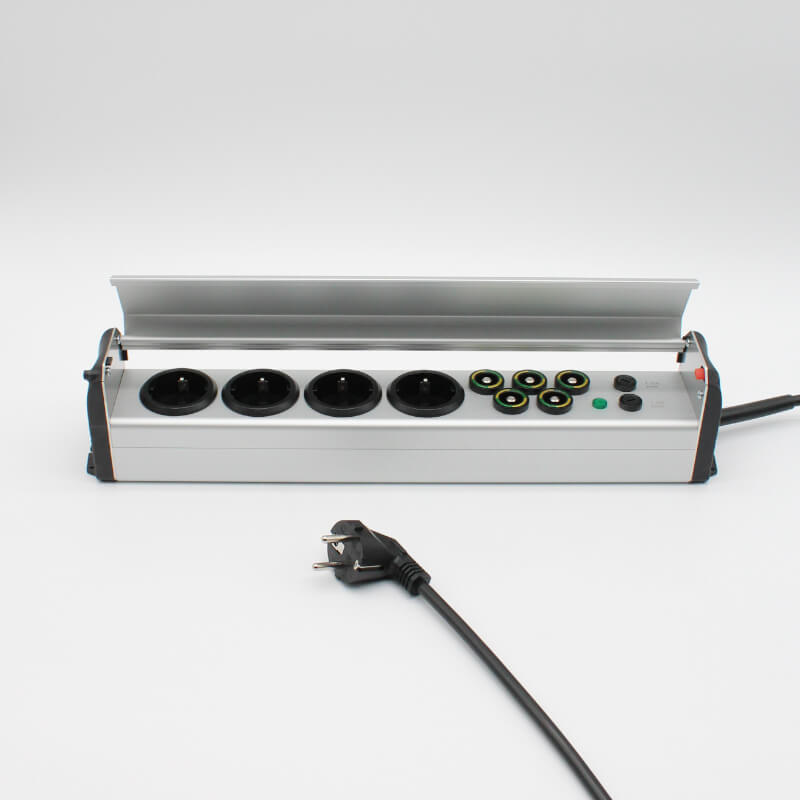

The SLG-4-MED medical Power strips are made of a sturdy, anodized aluminum body. The individual plugs are secured by a lockable aluminum protective hood, which prevents each system against unauthorized modification and also protects the socket outlets from liquids, like dripping infusion solutions. The surface can be cleaned very well due to the smooth material properties. The green function control light can also be seen clearly in the closed state and indicates if the power strip is current carrying. A double fuse, one in the neutral line and one in the hot line, guarantees a fast response time and the transparent power plug helps to plug the power strip in phase. Werth Systems Medical Grade Power Strips are available with European CEE7/7 Plugs and Type F Sockets for the most of the EU-Countries or Type E Sockets for France, Belgium, Poland, Czechia and Slovakia.
Technical Information WERTH SYSTEMS SLG-4-MED Medical Power Strip
Technical Components
- Max. power consumption of 2500 W
- Max. current with 10 A and 253 V Max. voltage
- 4 Sockets, Input Plug Type: Type E + F (CEE7/7), Output Sockets Type: F (CEE 7/4) or optional Type E (CEE 7/5) - VDE certified sockets & 5 Potential Equalization Pins
Versions, Sizes & Measurements
- 4 Socket standard lengths of 3m (Part number 2000694) and 5m (Part number 2000695) further lengths available upon request
- 415 x 87 x 65 mm (W x H x D)
- 800 g
- POM / Glass Fieber and Aluminum housing
Norms & Conformity
- IEC60601−1−2 :2014, DIN VDE 0620-1 :2016-01
- CE, RoHS
- IP 40

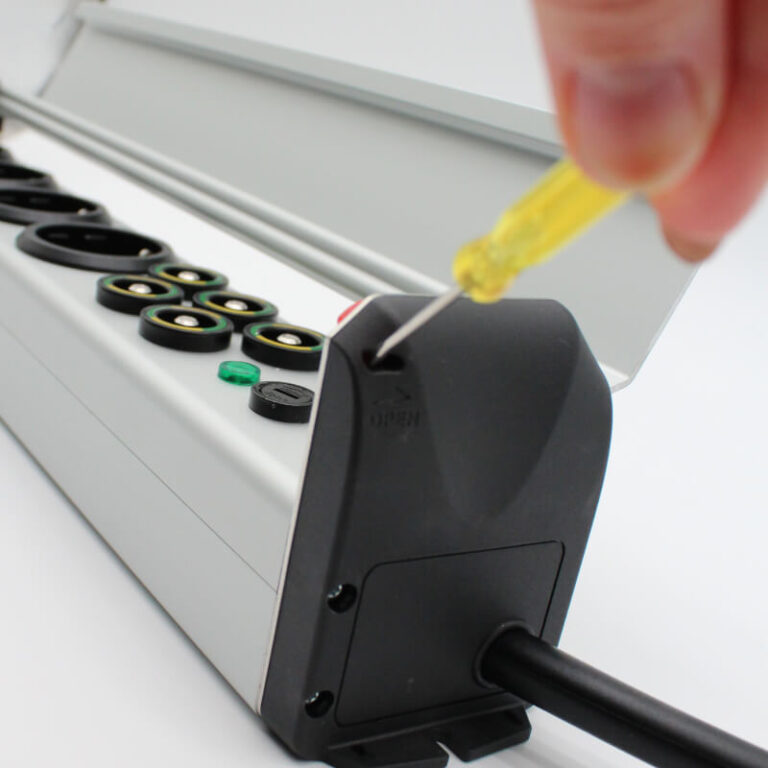

Secured System With EASY-LOCK Feature
The protective hood protects the system against unauthorized modification. Thanks to the EASY-LOCK mechanism, you still can get access to the sockets very fast, as long you did not lock the protective hood with a 2mm hexagon socket screw key.
Further Products of interest
WERTH SYSTEMS CMP-1550
WERTH SYSTEMS CMP-1550 All-in-One-PC is our 15,5″ fanless and extendible medical panel pc in a durable and cleanable aluminum case with PCT-Touch-Glass front and a PCIe x16 Slot for additional Cards.
WERTH SYSTEMS XE-850
The WERTH SYSTEMS XE-850 Medical Computer is our compact, fast and fanless Medical Box PC in an aluminum housing especially designed for hygiene sensitive areas and it is a perfect solution for e.g. PDMS applications.

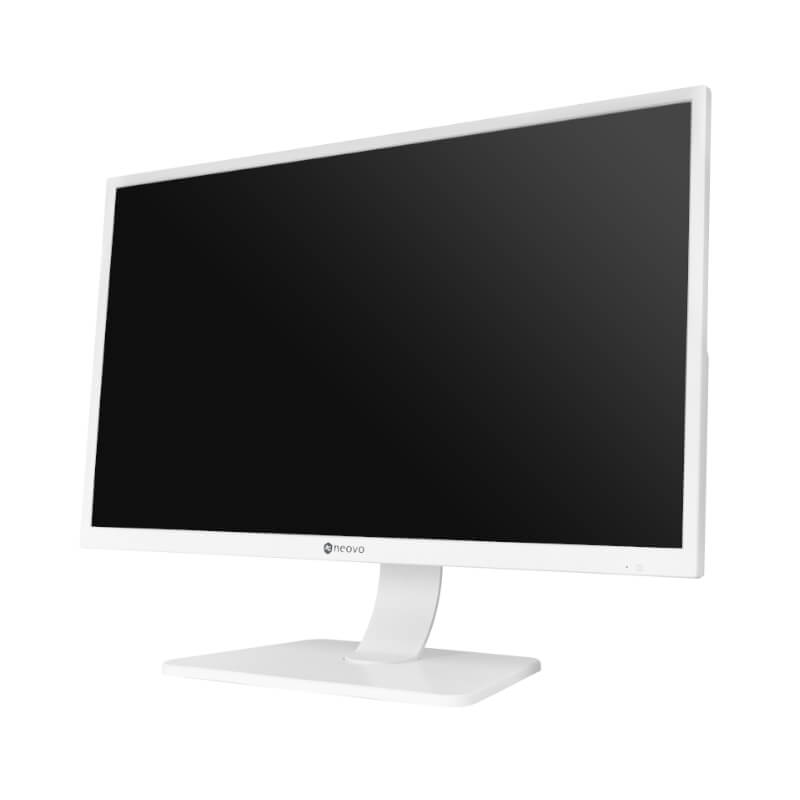

AG Neovo ME-3201
