WERTH SYSTEMS SLG-3-MED
Medical Power Strip With 3 Sockets with built-in potential equalization splitter
- Different versions available - standard length with 3m & 5m cable further lengths upon request
- Easy to install -"ready to use" design with built-in mounting plate
- Durable - aluminum housing & rugged sockets with child-proof lock
- Flexible - mountable on DIN-Rails, Infusion-Stands or Carts
- Glass fiber reinforced side frames and mounting points
- Easy to check - green operation light shows operating state
- Complies with Potential Equalisation according to IEC60601-1 - built in additional Potential Equalisation Pins
- Made in Germany

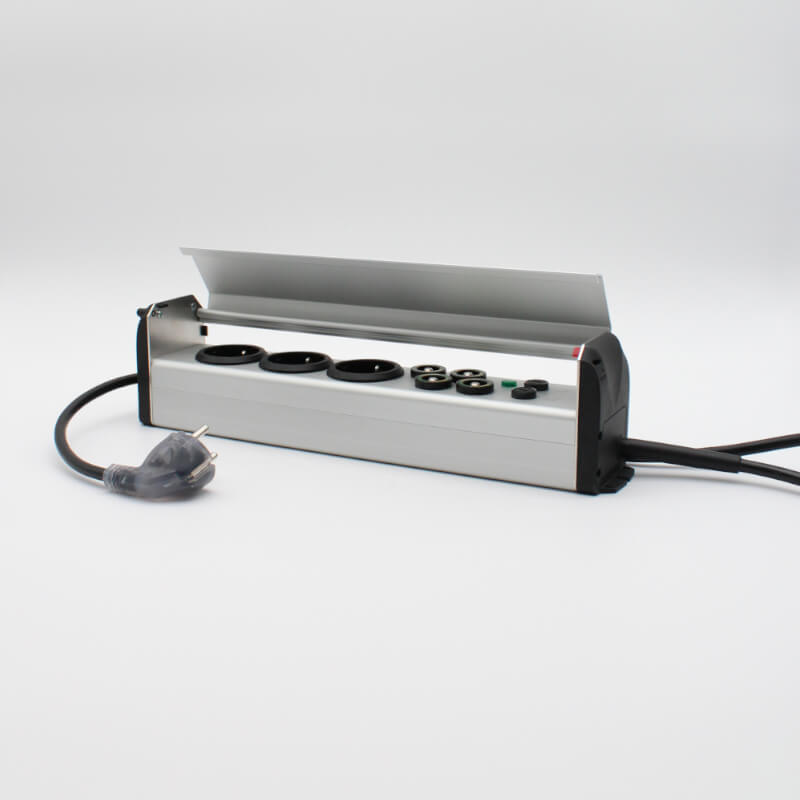

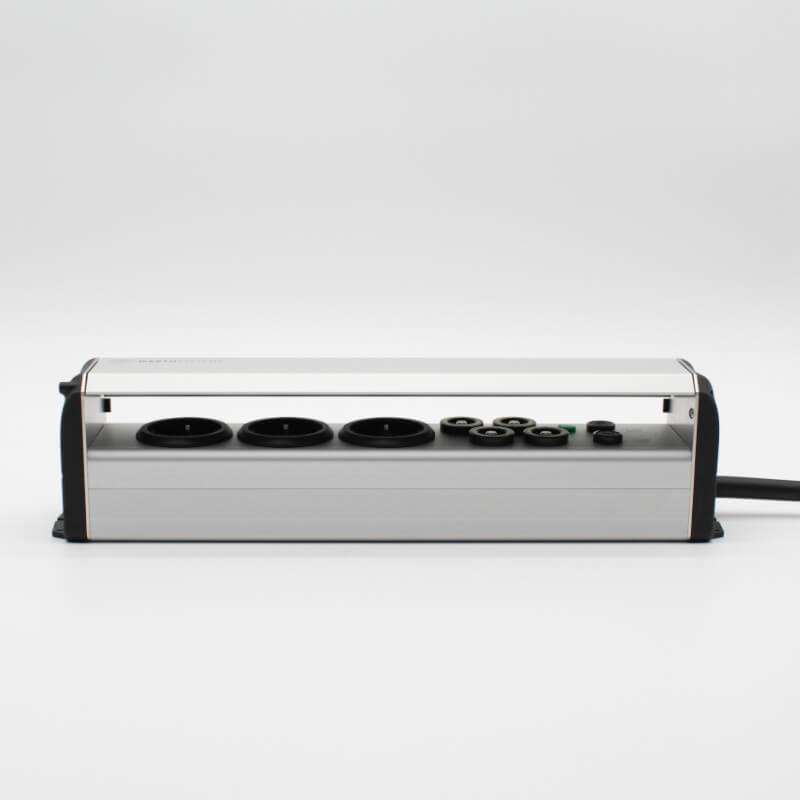

The SLG-3-MED medical power strips are made of a sturdy, anodized aluminum body. The individual plugs are secured by a lockable aluminum protective hood, which prevents each system against unauthorized modification and also protects the socket outlets from liquids, like dripping infusion solutions. The surface can be cleaned very well due to the smooth material properties. The green function control light can also be seen clearly in the closed state and indicates if the power strip is current carrying. A double fuse, one in the neutral line and one in the hot line, guarantees a fast response time and the transparent power plug helps to plug the power strip in phase. Werth Systems Medical Grade Power Strips are available with European CEE7/7 Plugs and Typ F Sockets for the most of the EU-Countries or Typ E Sockets for France, Belgium, Poland, Czechia and Slovakia.
Technical Information WERTH SYSTEMS SLG-3-MED Medical Power Strip
Technical Components
- Max. power consumption of 2500 W
- Max. current with 10 A and 253 V Max. voltage
- 3 Sockets, Input Plug Type: Type E + F (CEE7/7), Output Sockets Type F (CEE 7/4) or optional Type E (CEE 7/5) - VDE certified sockets & 4 Potential Equalization Pins
Versions, Sizes & Measurements
- Standard cable length of 3m (Part number 2001289) and 5m (Part number 2001360), further lengths available upon request
- 330 x 87 x 65 mm (W x H x D)
- 725 g
- POM / Glass Fiber and Aluminum housing
Norms & Conformity
- IEC60601−1−2 :2014, DIN VDE 0620-1 :2016-01
- CE, RoHS
- IP40

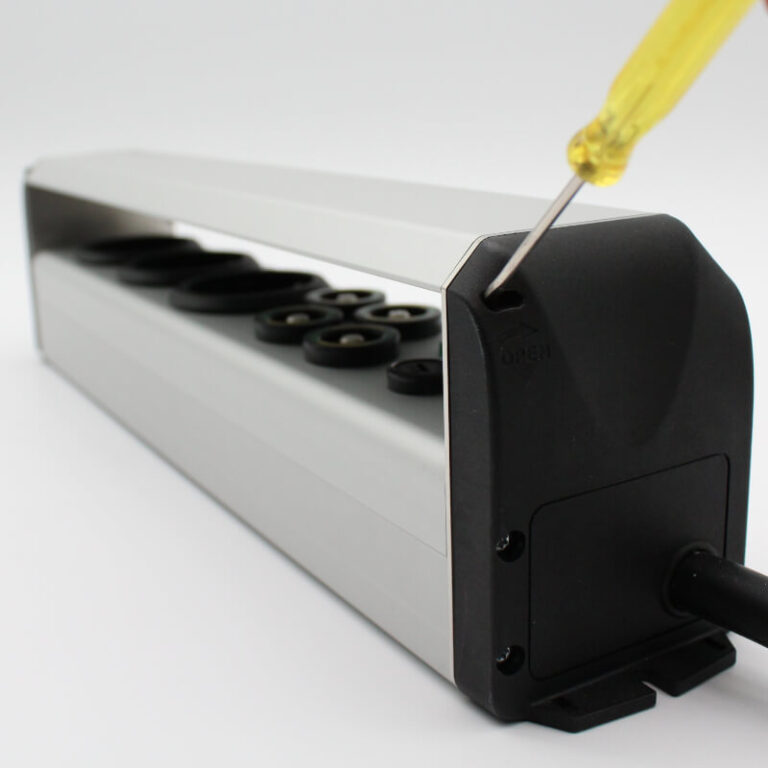

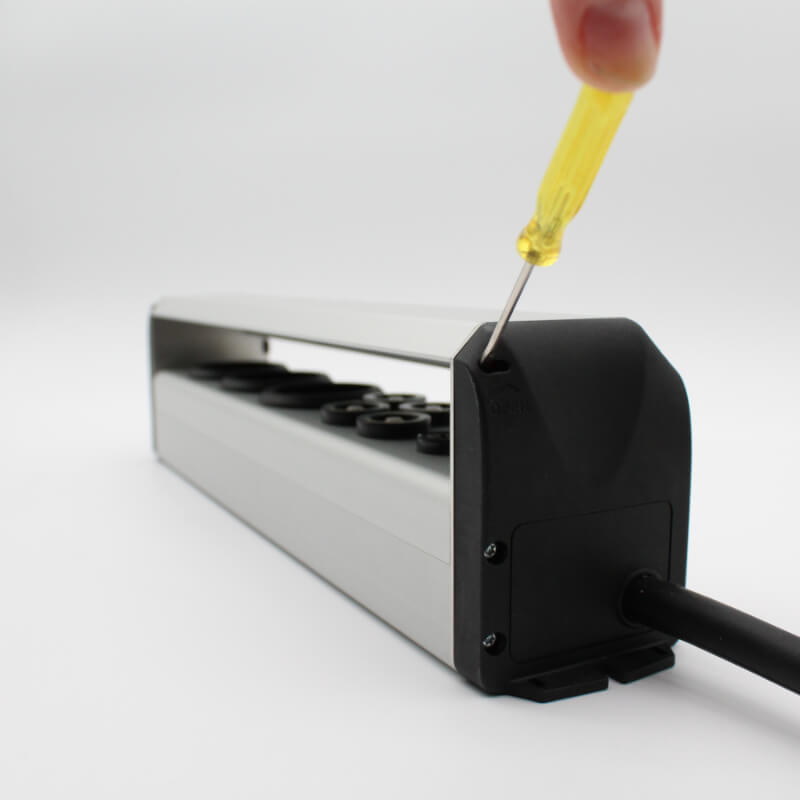

Secured System with EASY-LOCK feature
The protective hood protects the system against non-authorized modification. Thanks to the EASY-LOCK mechanism, you still can get access to the sockets very fast, as long you did not lock the protective hood with a 2mm hexagon socket screw key.
