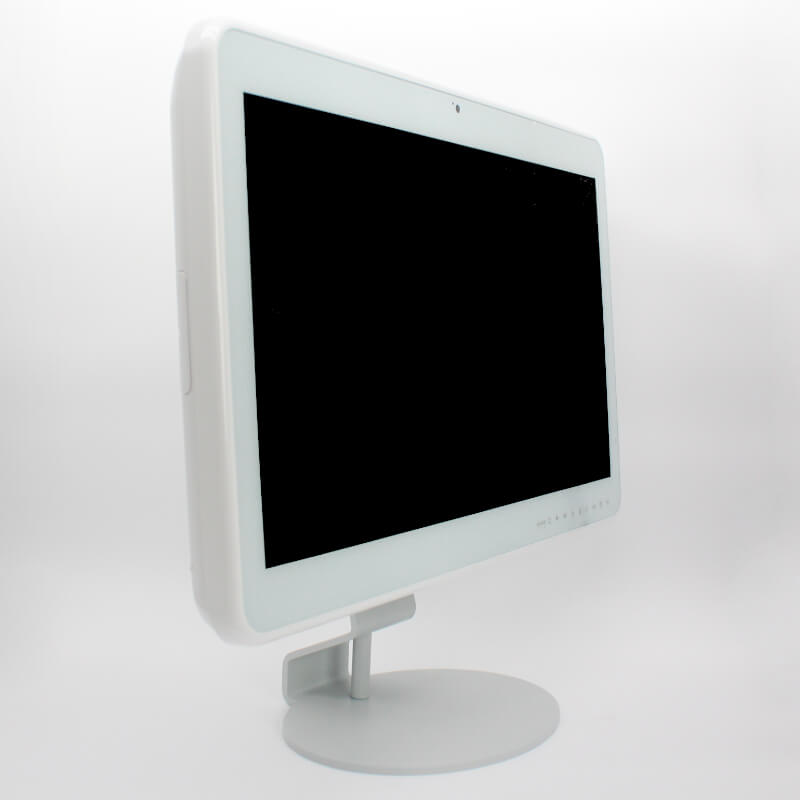

Fanless Medical Panel PC for mobile solutions with 23.8” Display
The fanless and battery driven SMART-MED MP-7724 All-in-One-PC is designed for mobile cart solutions. Due to the complete closed housing, the fanless design with a heat pipe cooling system and the versatile expansion possibilities, it is the ideal basis for the creation of mobile and powerful medical electrical system. The 4 times protection of the batteries, protect the MP-7724 against over-voltage, over-current, over-temperature and under-temperature as well.

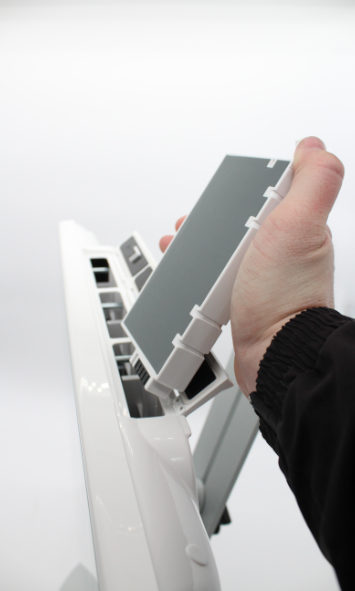

The MP-77 Series has a battery runtime of more than eight hours in normal work mode. Empty batteries can be swapped easily without the need of a shutdown, so is the system able to work around the clock without any break.
The available external charger bay allows a fast charge within only three hours for up to 100%.

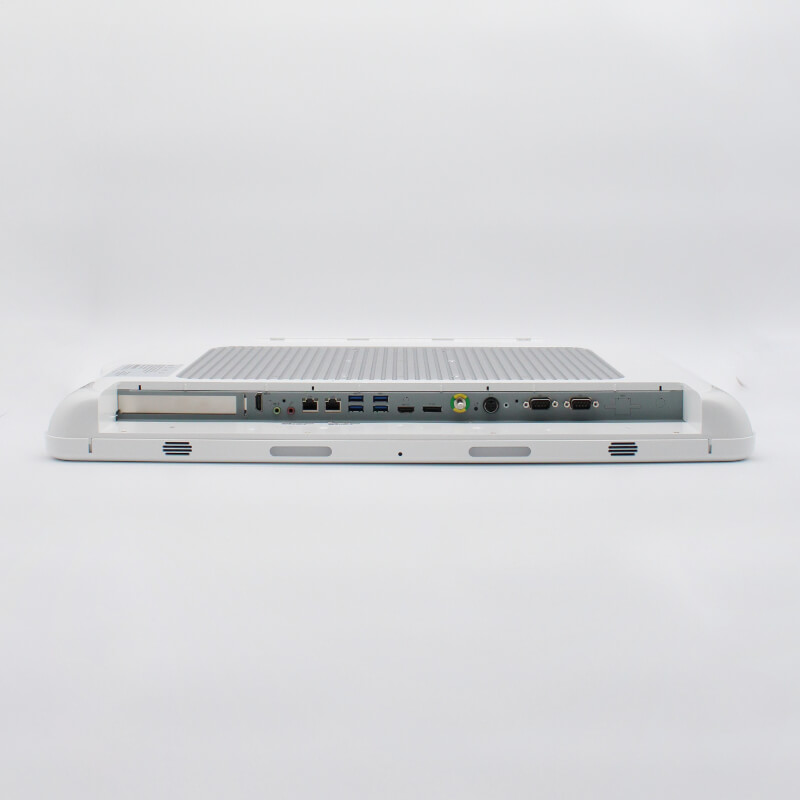

2x RS-232, 2x Side USB 2.0, Dual Band AX Wi-Fi, 5MP Camera, Smart Card Reader, RFID, DICOM preset
Occupies PCIe Slot - Build in Isolation Card for 2x RS-232, 1x USB 2.0 12 Mbit/s, 1x RJ45 Gigabit Lan
External Charger Bay with 3 hours fast charge (100%)
1x 500 GB / 1 TB / 2 TB - 2.5 HHD or 1x 128 GB / 256 GB / 512 GB 2.5’ SSD for 24/7 use
Occupies PCIe Slot - please contact us for supported cards
Expansion to 3 years / 4 years / 5 years Warranty available
The Seal Shield Seal Silk Waterproof Silicone Mouse is a waterproof IP68-Certfied silicone mouse with cable.
The Seal Shield Cleanwipe Pro 101 Washable & Ergonomic Keyboard is a washable, IPx8-Certfied keyboard with full numeric keypad and latex-free cover.
Seal Shield Seal Storm Waterproof Wireless Mouse, with IP68-Certfication, charging base and well elaborated button and scroll function.
