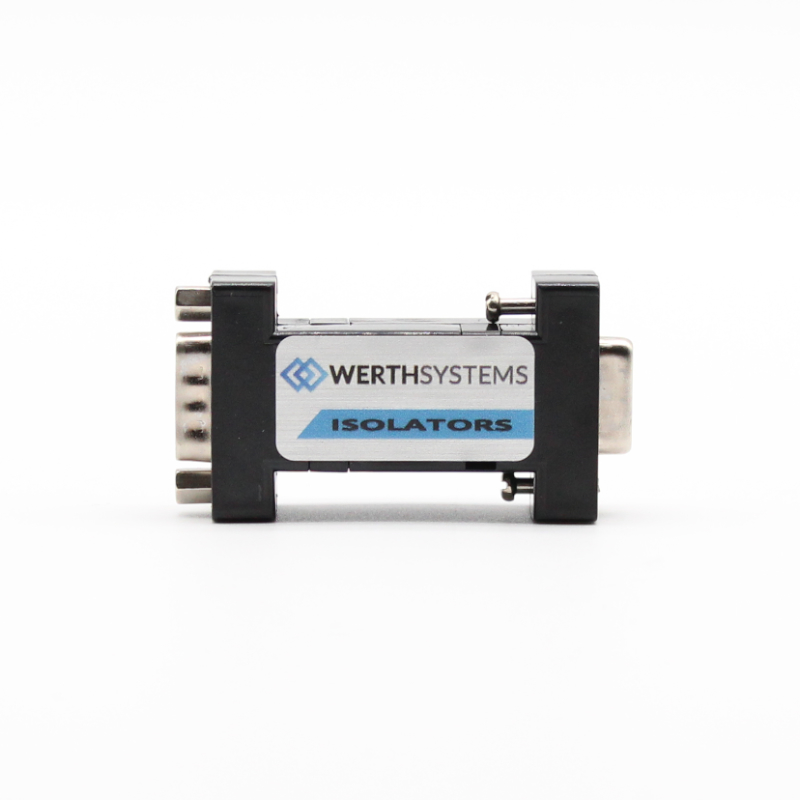

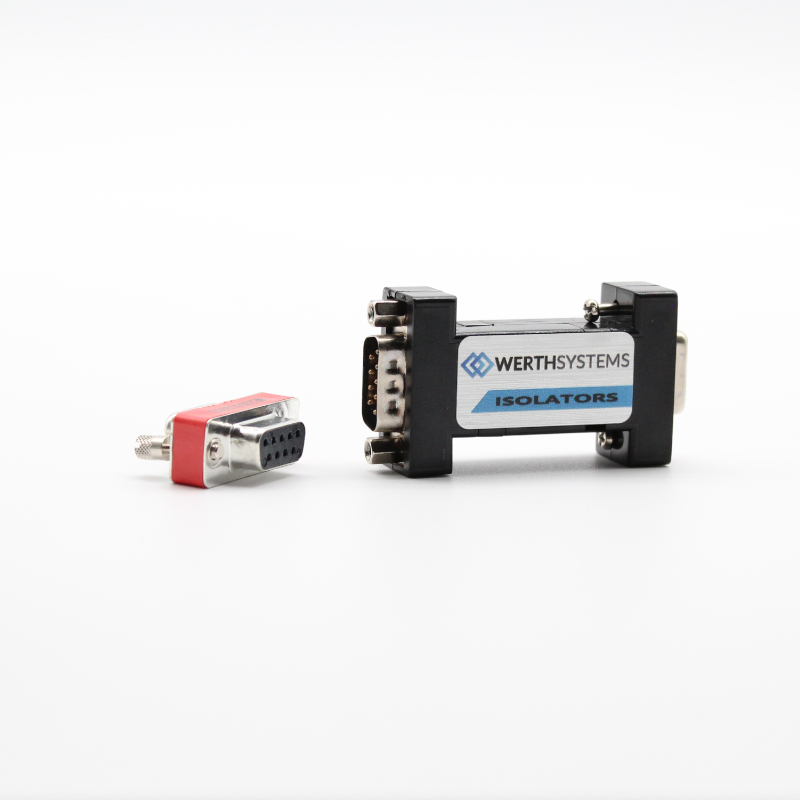

SMART-MED MI-RS 912 Medical Isolator
Medical High Speed RS-232 Isolator with 4 KV Isolation
- IEC/EN 60601−1−2 :2020 tested Isolator with 4 kV isolation
- Easy to install - Plug & play and port powered
- Durable - none ageing parts and 5 years warranty
- Secures your system - leakage current, surge and overvoltage protection
- Optimal signal quality - single channel design with auto data correction
- Assembled in Germany
The MI-RS 912 Serial Port Isolator can be used for medical electrical systems in order to reduce the leakage current and to isolate the applied parts from the IT-devices. The MI-RS 912 protects your devices against voltages surges, lightning strikes, GND loops and noise conditions. Due to plug & play support, there is no extra driver needed. The MI-RS 912 only need less than 10 mA Current from the RS-232 Port, so it has a very high compatibility to various Chipsets and Devices, and it does not need any additional power supply. There is a high speed optical Isolator installed inside the MI-RS 912 so very high transfer rates up to 912600 bps are supported, too. It also reduces high frequency noise and interferences due to a special filter system.
Technical Information MI-RS 912 Medical Isolator
Technical Components
- Part Number: 2000529
- Surge Protection: Yes, reinforced TAZ Diode with max. 600 W/Sec
- Isolation Voltage of 4 KV AC for 1 Minute (50/60Hz), 4 KV DC for 1 Minute and Leakage Current of less than 0.4 Microampere
- Supported Transfer Rate of 300 to 912600 bps

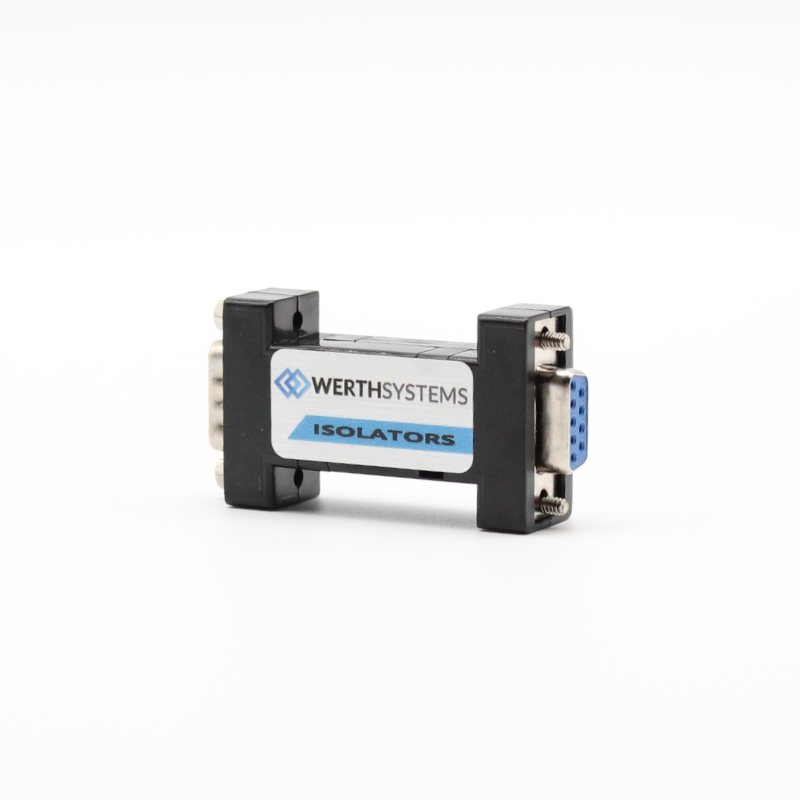

- DB9 Female input connector & DB9 Male Output connector
- Power Consumption of less than 10 mA
Sizes & Measurement
- 76.3 x 33.9 x 17.8 mm (W x H x D)
- 35 g
- Ruggedized ABS
Norms & Conformity
- IEC60601−1−2:2020
- CE, RoHS
- IP40
Isolation and patient environment
The MI-RS 912 is a state-of-the-art High Speed Serial Port Isolator which is EN60601-1-2 tested. Every single unit is tested on performance and isolation levels, up to 4000 V AC. This guarantees a ZERO DEFECT RATE.
