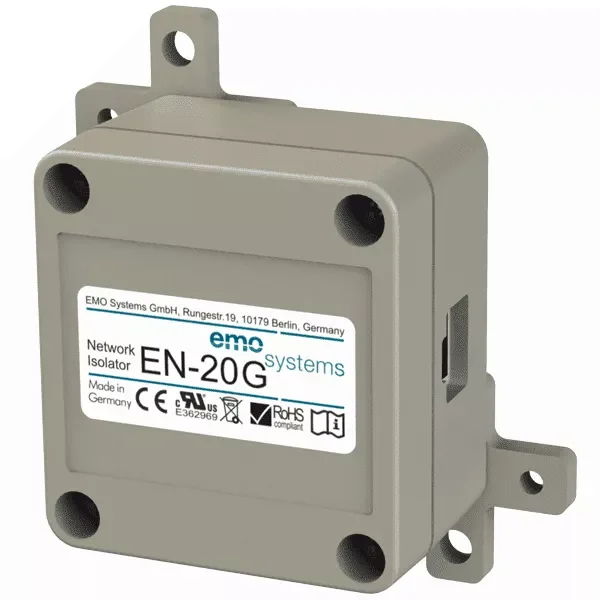

emosafe EN-20G Network Isolator

Gigabit Network Isolator for the secure Ethernet connection of medical devices and systems.

IEC 60601-1 compliant and UL Recognized Component

Supports 10, 100 and 1000 Mbit/s data transfer rates

2 MOPP for use in the patient environment

4.0 kV AC / 5.6 kV DC dielectric strength

Robust plastic housing with included mounting kit

In the focus

Secure Network Connections in the Patient Environment

With Easy Integration.

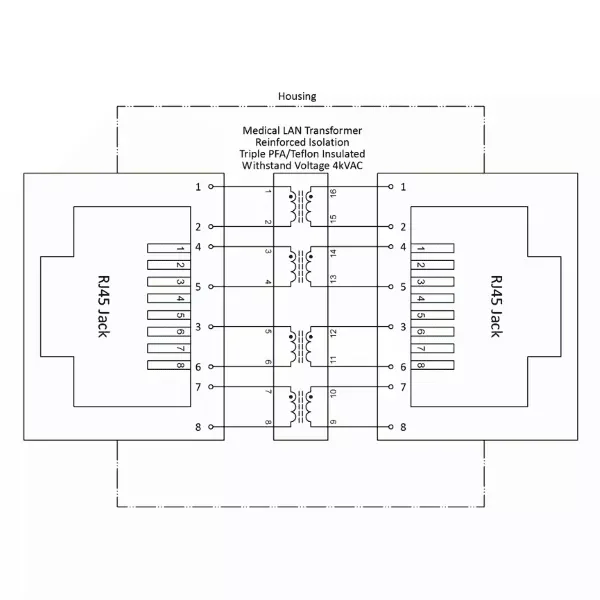

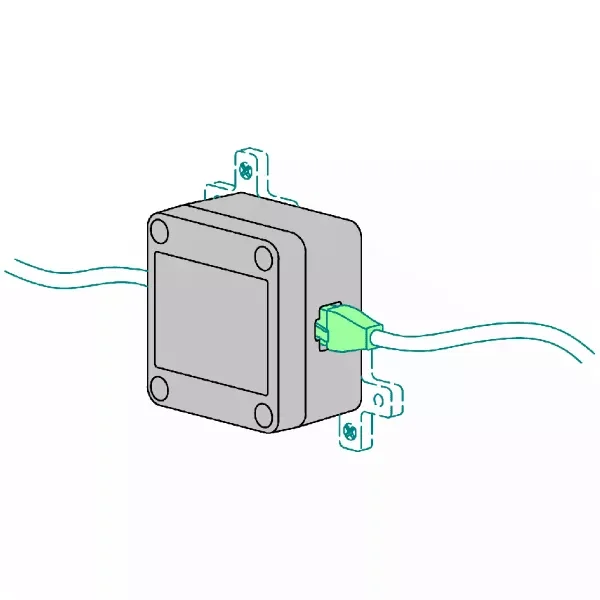

The robust plastic housing is designed for wall or equipment mounting and can be secured using the included mounting brackets. Since signal transmission is based on the principle of electromagnetic induction, the Network Isolator requires neither a separate power supply nor additional software drivers.

Product Description

The EMOSAFE EN-20G is designed to provide galvanic isolation for copper-based Ethernet connections and is particularly suitable for integration into medical electrical devices and systems.

By electrically isolating the network connection, the EN-20G helps prevent dangerous leakage currents and potential differences. At the same time, it protects connected devices against external voltages and power surges that may be introduced into the network through installation errors, switching operations or electrostatic discharge.

The Network Isolator supports Ethernet connections up to 1000BASE-T, provides a dielectric strength of 4.0 kV AC or 5.6 kV DC, and meets the construction requirements of IEC 60601-1. Its compact, robust housing allows for flexible mounting on walls or equipment panels.

Technical Components

10 / 100 / 1000 Mbit/s Ethernet data transfer
Class D / Cat 5e performance
2× RJ45 sockets, straight
4.0 kV AC / 5.6 kV DC dielectric strength
Reinforced isolation according to IEC 60601-1
2 MOPP (Means of Patient Protection)
Suitable for devices with supply voltages up to 250 V AC / 300 V DC
No separate power supply or software drivers required

Sizes & Construction

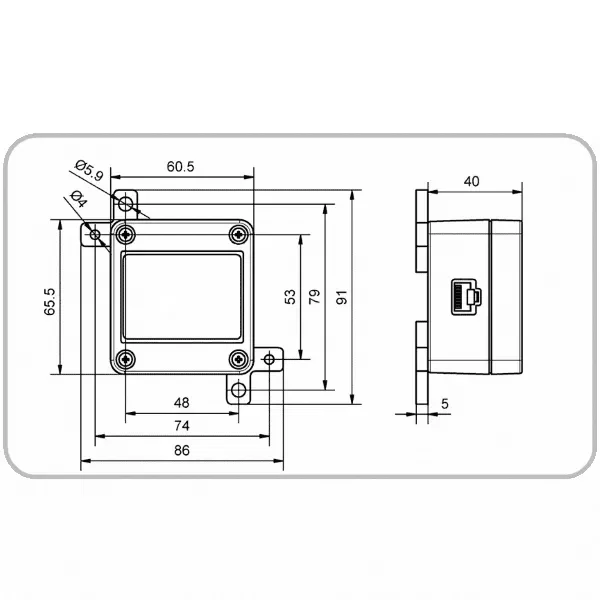

Approx. 74 × 79 × 40 mm housing size
Approx. 95 g
Robust plastic housing
Self-enclosed construction
Protection rating IP40 according to EN 60529
More than 250 RJ45 mating cycles

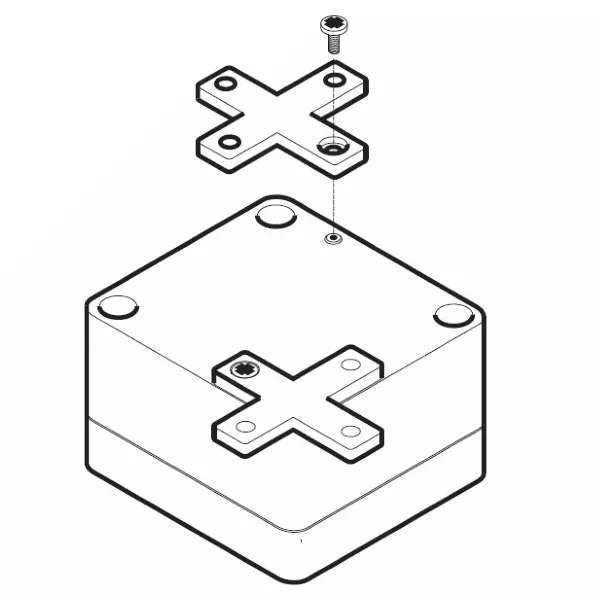

Wall or device-panel mounting with optional mounting brackets

Standards & Conformity

IEC 60601-1
IEC 60601-1-2
ANSI/AAMI ES 60601-1
CAN/CSA-C22.2 No. 60601-1
UL Recognized Component, File No. E362969
IEC 60664-1, Overvoltage Category III
Low Voltage Directive compliant
EMC Directive compliant
RoHS compliant
CE conformity
