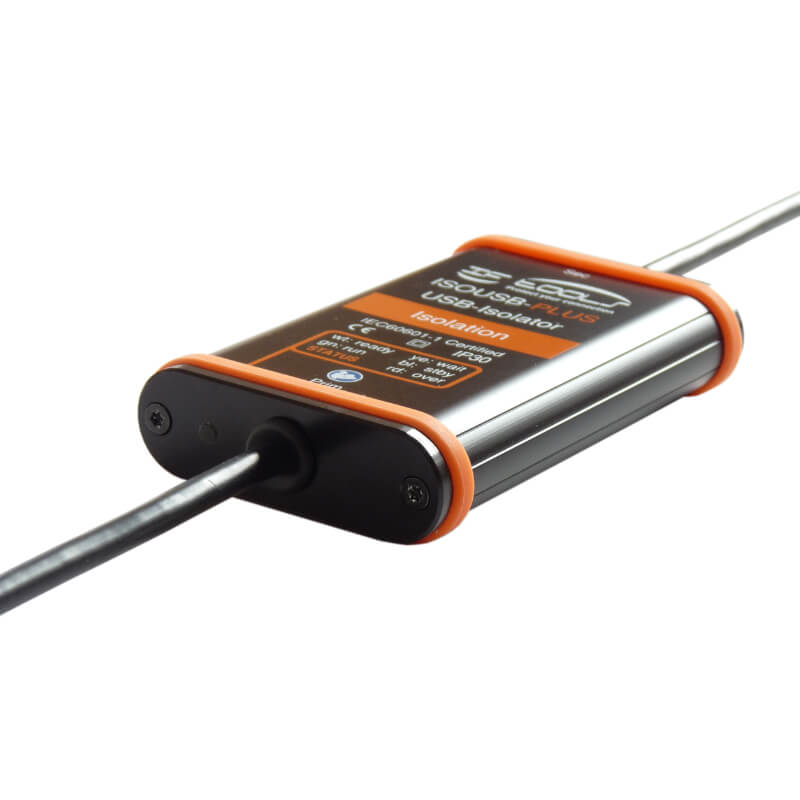

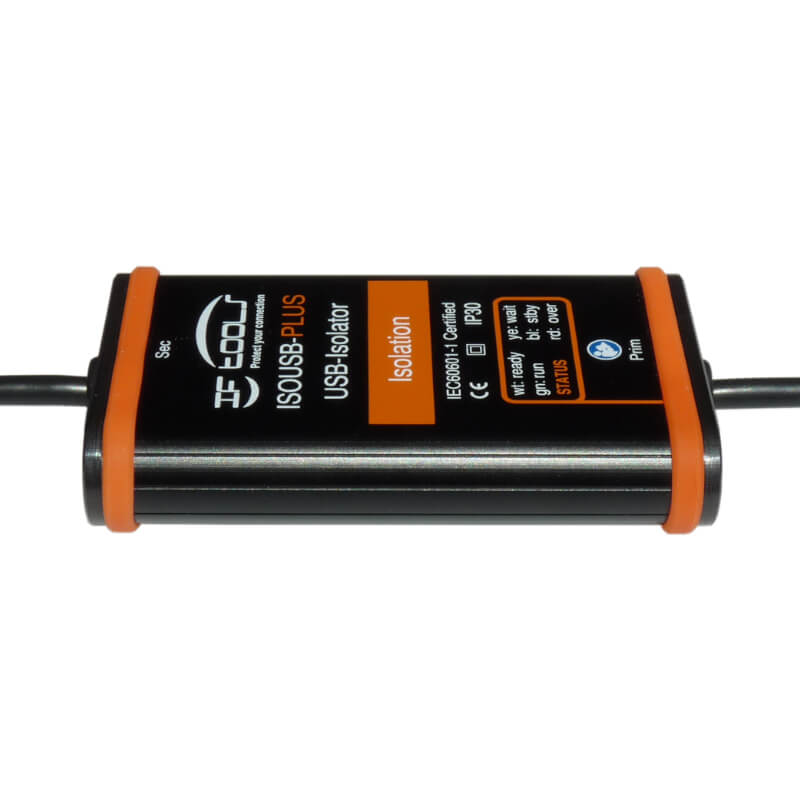

ISOUSB-PLUS-CABLE Isolator

Certified USB cable Isolator for sensitive applications like medical devices

  • IEC 60601-1 Rev 3.2 Standard Certified
  • Supports USB devices with USB full-speed with 12 MBps
  • Safe and easy usage with overload protection
  • Multicoloured LED on bottom side indicates detailed status
  • Made in Germany
Certified USB Cable Isolator which effects a potential-separating decoupling of all USB connections and separates the ‘normal’ PC from critical applications. The with single isolation permissible and tested high isolation voltage of up to 7500 Vdc 1sec. and certified 4000 Vms 1 min reinforced isolation according to EN60601-1 Rev.3.1.  Recommend the isolator especially for sensitive applications. The product contains cables with connector type A and connector type B. The output is short-circuit proof and indicates an overload of the system by a red LED. The output is switched off in the event of an overload.

Technical Information ISOUSB-PLUS-CABLE Isolator

  • Isolation: Certified 4000 Vrms 1 min. 2*MOPP, permissible and tested with single isolation 5000 Vrms 1min, 7500 Vdc 1 sec.
  • Transmission rates: Full speed (12 MBits/s)
  • Transient protection: Integrated protective diodes with approval ±15 kV (acc. IEC-61000-4-2)
  • Integrated cables with plug type A and plug type B
  • 96 x 57 x 18 mm (W x H x D) with ca. 2m cable length
  • 220 g
  • Robust shielded metal housing
  • IEC60601-1: 2020 (Ed3 .2), IEC60601-1-2: 2015
  • Safety class II
  • IP30 Housing

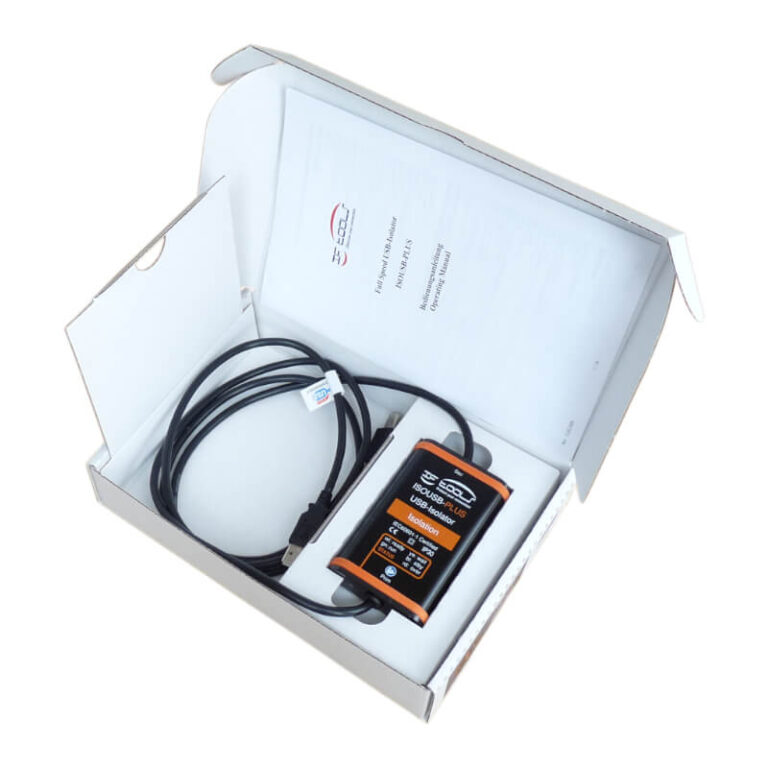

Werth Systems IF Tools ISOUSB Plus Cable scope of delivery

Scope of delivery & warranty

The scope of delivery includes the certified USB Isolator ISOUSB-PLUS-CABLE with integrated 90cm USB cables on both sides and a 16 pages manual in German and English. Made in Germany according to high production standards and comes with a warranty of three years.
